Super Slim LED Strip Connector - Strip to Strip - 2 Pin
  • Super Slim LED Strip Connector - Strip to Strip - 2 Pin
  • Super Slim LED Strip Connector - Strip to Strip - 2 Pin
View All photos
Super Slim LED Strip Connector - Strip to Strip - 2 Pin
Model: strip-to-strip-super-slim
  • Quantity
  • $1.50



    2 Pin LED Strip Connector - Strip to Strip - Super Slim

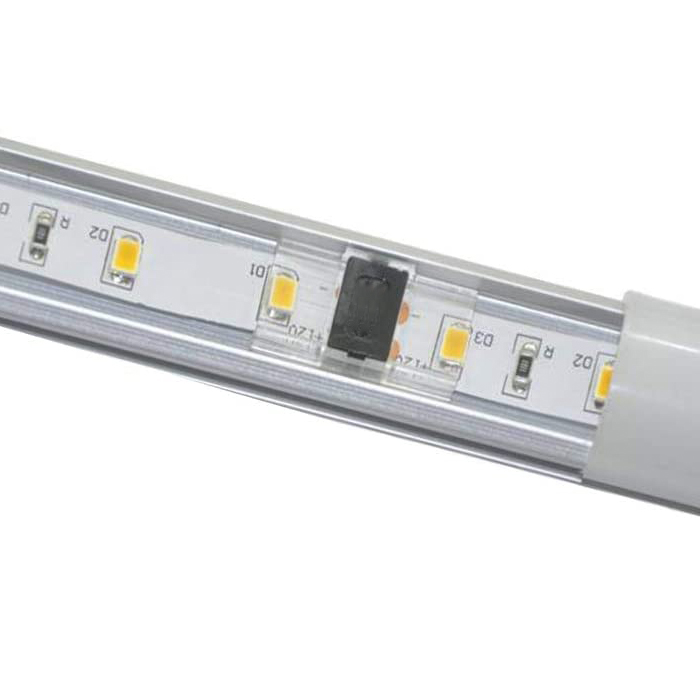

    This 2 pin LED strip connector easily join two pieces of 2 pin LED strips back to back. It is specially designed with super slim body and super low profile, making it the best companion for installing LED strip lights using LED aluminum channels. It easily fit most LED aluminum channel profiles, forming a strip to strip connection for white LED strip lights or single colored LED strips. The LED connector is suitable for our LED light strips that are 10 mm or 8 mm wide, and with the LED density of 160 LEDs per meter at most.

    This 2 pin LED strip connector is super easy to use to create permanent connections. It is a solderless connector. Slip the LED strips along the clear guide into the connector on both ends and firmly press down the black button. The connector pierces through the copper solder pads of the LED strips, and forms a strong mechanical and electrical connection of two pieces of LED strips back to back!

    The clear guide for the LED strip will not block the light, allowing the connector compatible for LED strips of high LED density, up to 160 LEDS per meter.

    Product Features

    • Super slim 2 pin LED strip connector.
    • 5 Amps current rating.
    • For 5V, 12V, 24V or 36V DC LED strip lights.
    • Create tight and secure connection.
    • Flame retardant material.
    • Fit most LED aluminum channel profiles.

    For more choices of indoor or waterproof LED strip connectors, please see the LED strip connector category.

    Recommended Readingļ¼š
    How to install LED strip lights?

    Specifications


      Model:  strip-to-strip-super-slim
      Finish:  Clear White
      LED strip:  10mm wide, single color, max 160 LEDs/m
      Connector Size:  21.6x11.5x4.3 mm (0.85x0.45x0.17 in)
      Amperage:  5 Amps
      Voltage:  5V, 12V, 24V, 36V DC
      Rating:  CE, RoHS
      Material:  Flame retardant
