12V 12.5A 150Watt LED Power Supply, Mean Well LRS-150-12
  • 12V 12.5A 150Watt LED Power Supply, Mean Well LRS-150-12
  • 12V 12.5A 150Watt LED Power Supply, Mean Well LRS-150-12
  • 12V 12.5A 150Watt LED Power Supply, Mean Well LRS-150-12
  • 12V 12.5A 150Watt LED Power Supply, Mean Well LRS-150-12
View All photos

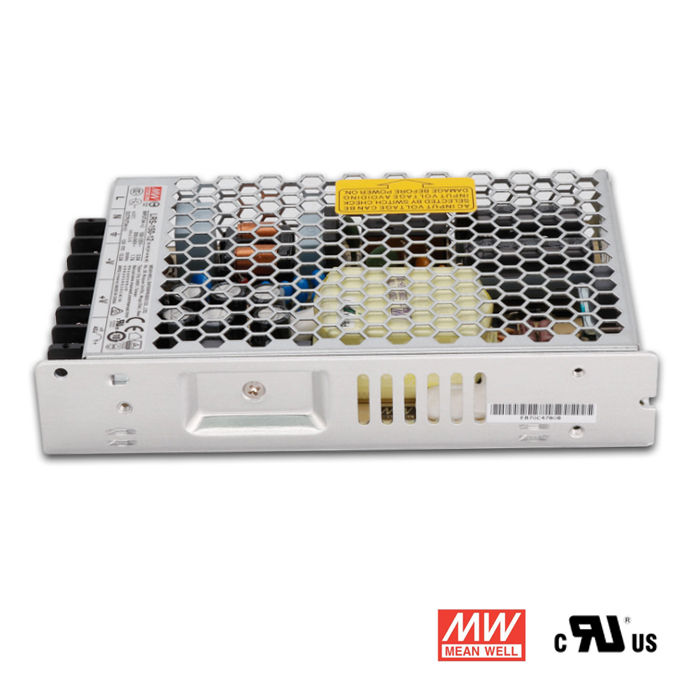

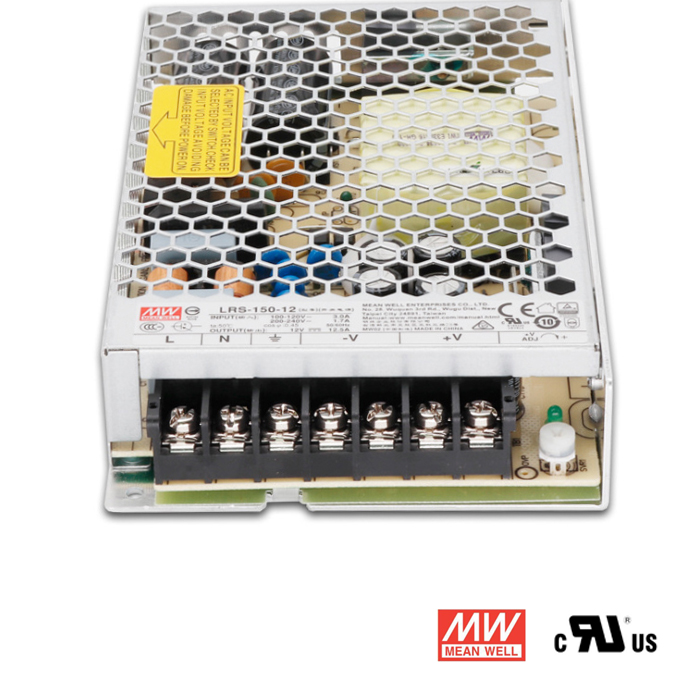

12V 12.5A 150Watt LED Power Supply, Mean Well LRS-150-12
Model: LRS-150-12
  • Quantity
  • $26.00



    12V 12.5A 150Watt LED Power Supply, Mean Well LRS-150-12, UL Listed

    This Mean Well LRS-150-12 is a 12V 12.5 amp LED driver. Economy wise, it also works perfect as a 12V 10 amp power supply. It is a metal-enclosed AC DC power supply, a reliable and economical 150W power source for 12V LED strip lights and other LED lights. In addition to the high efficiency up to 90%, its metal enclosure greatly enhances heat dissipation, together with optimal design of free air convection, enabling the LRS-150-12 to work on full load in the temperature range -25 ~ +70°C (-13°F ~ +158°F).

    This 12V power supply is designed with a low-profile (30mm, 1.18in). It has extremely low no-load power consumption and complies with UL62368-1 safety, making it easy to pass various design and installation requirements. LRS-150 has complete protection functions and resistance to 5G vibration, providing a cost-effective solution for various residential and commercial applications.

    Easy installation and suitable for North America and Europe

    It is easy to install this 12V power supply. When installing power supply for AC side, use our three prong wall plug cord to plug into an outlet or socket, or use wire cables(14AWG wire or 16AWG wire) to hard wire the power supply to AC source. For DC side, connect to LED strip lights or LED controllers using wires (16AWG, 18AWG, or 20AWG wire, depending on length and current load).

    This 12V power supply is suitable for installation in North America and Europe. It has an input voltage switch to select 115V(also referred to as 110V or 120V) or 230V( 220V or 240V).

    Product Features

    • MEAN WELL LRS-150-12 1U low profile(30mm, 1.18in), enclosed power supply
    • AC input: 100 - 305VAC (110V, 220V, 277VAC)
    • Output Voltage: Constant voltage 12V DC
    • Operating Temperature: -25 ~ +70°C (-13°F ~ +158°F)
    • Rating: UL listed, CE
    • Protections: short circuit / over load / over voltage / over temperature
    • Withstand 300Vac surge input for 5 seconds
    • No-load power consumption: less than 0.5W
    • Cooling: Metal enclosure, Free air convection
    • Withstand 5G vibration test
    • Operate on up to 5,000 meter altitude
    • Power on LED indicator
    • High efficiency, highly reliable
    • 100% full load aging test
    • MEAN WELL 3 year warranty

    If you need other 12V LED power supplies, please see the 12V LED power supply series.

    Specifications


      Model:  LRS-150-12
      Type:  Constant Voltage
      Waterproof:  IP20, non-waterproof
      Max Power:  150 Watts
      Input Voltage:  115/230 Vac Selectable
      Output Voltage:  12V DC
      Output Current:  12.5 Amps max.
      Working Temp. :  -30~+70°C (-22~+158°F)
      Manufacturer:  Mean Well
      Rating:  UL, CE
      Dimension:  159x97x30mm (L*W*H)/6.26x3.82x1.18in
      Warranty:  3 Years
