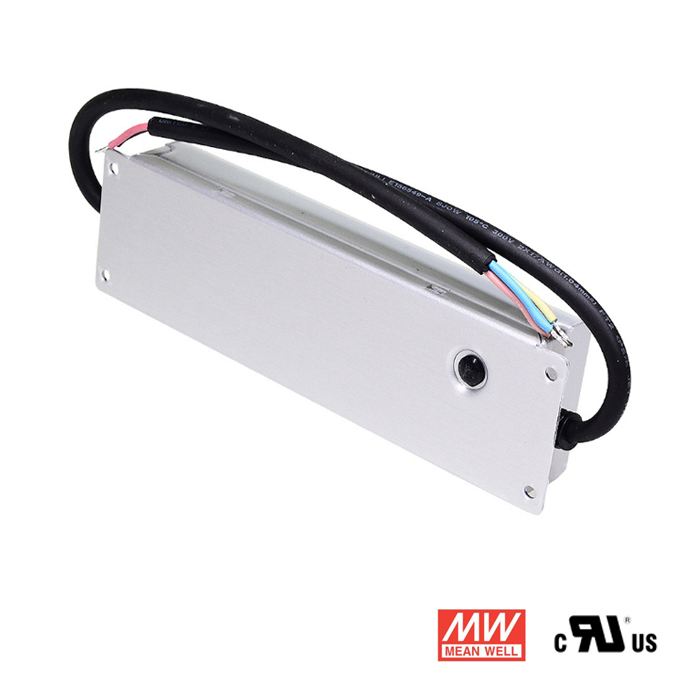

12V 12.5A 150Watt Waterproof Power Supply, Mean Well XLG-150-12-A

This IP67 waterproof power supply provides 12.5amp, 150W max, 12V DC power. It works great as a 12V 10a power supply, a highly reliable constant voltage power source for 12V LED strip lights and other LED lights in indoor and outdoor applications. In addition to the high efficiency up to 93%, its metal enclosure greatly enhances heat dissipation, together with optimal design of natural air convection, enabling the XLG-150-12 to work on full load in the temperature range -40~+90°C (-40 ~ +194°F). It has extremely low no-load power consumption and complies with UL and CE regulation, making it easy to pass various design and installation requirements. XLG-150 has complete protection functions, providing a reliable solution for various residential and commercial applications.

This 12V 150W power supply is not only a constant voltage driver that is suitable for LED strip lights, but also a constant current power supply, suitable for constant current driven LED lights.

Easy installation and suitable for North America and Europe

It is easy to install this 12V 150W waterproof power supply. When installing the power supply for AC side, hard wire the power supply to AC source. For DC side, connect to LED strip lights or LED controllers using wires (16AWG, 18AWG, or 20AWG wire, depending on length and current load).

This 12V power supply is suitable for installation in both North America and Europe. It accepts a wide range of input voltage, from 100 to 350VAC.

Product Features

• MEAN WELL XLG-150-12 waterproof power supply.
• Waterproof: IP67.
• AC input: 100~305VAC.
• Output Voltage: Constant 12V DC.
• Bare wire cables in and out.
• Operating Temperature: -40~+90°C (-40 ~ +194°F).
• Rating: UL listed, CE.
• Protections: short circuit / over current / over voltage / over temperature.
• Cooling: Metal enclosure, natural air convection.
• Withstand 5G vibration test.
• High efficiency, highly reliable.
• Full load burn-in tested.
• MEAN WELL 5 year warranty.
