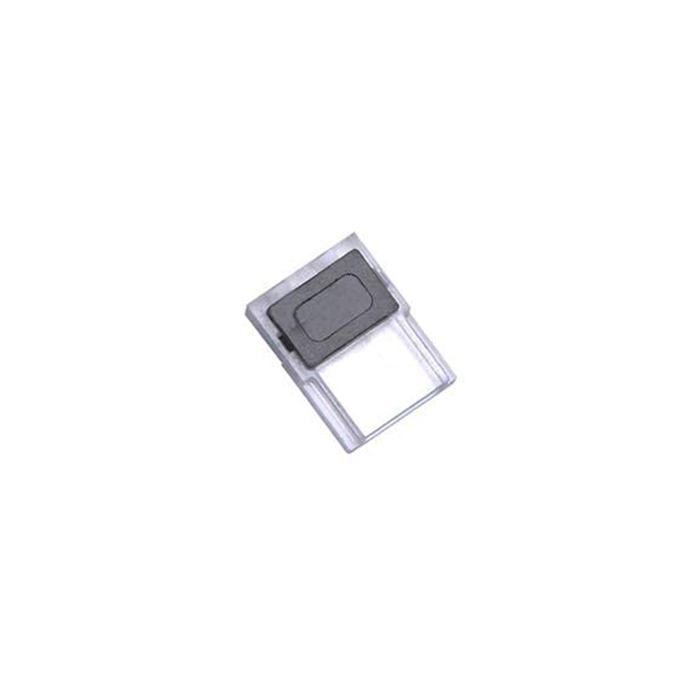

Super Slim LED Strip Connector - Strip to Wire - 2 Pin
Model: strip-to-wire-super-slim
  • Quantity
  • $1.50



    2 Pin LED Strip Connector - Strip to Wire - Super Slim

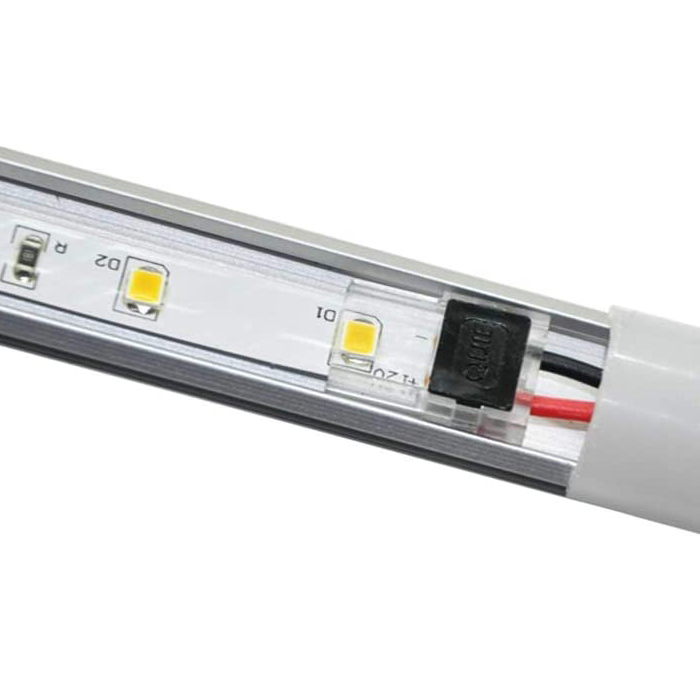

    This 2 pin LED strip connector is specially designed with super slim body and super low profile, making it the best complement for installing LED strip lights using LED aluminum channels. Its super slim body makes it easily fit most LED aluminum channel profiles, forming a strip to wire permanent connection for white LED strip lights or single colored LED strips. The LED connector is suitable for our LED light strips that are 10 mm or 8 mm wide, and with the LED density of 160 LEDs per meter at most.

    The wire is not included. It is sold separately. You may buy by the foot, and cut the wire to the length you need. That way the length of the wire for installation can be flexible, make installtion easier and the better looking.

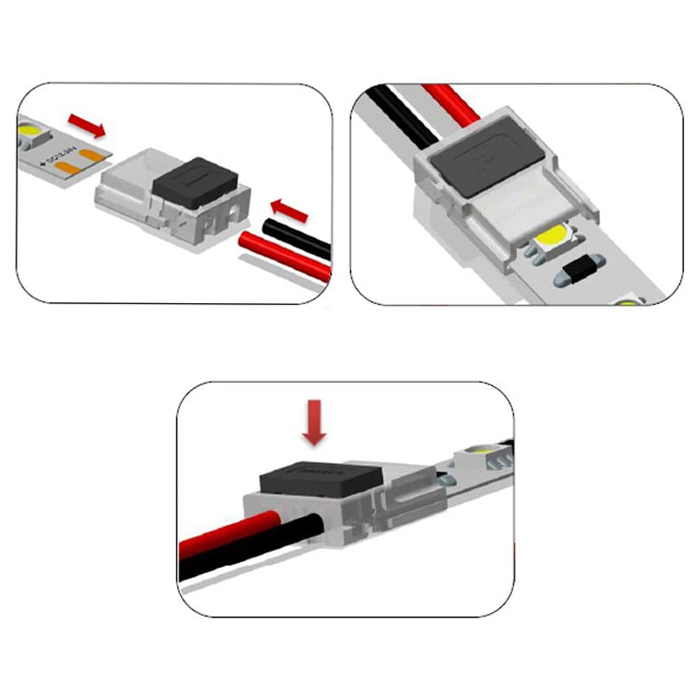

    This 2 pin LED strip connector is super easy to use. It is a solderless connector, no need to strip wire or solder wire. Slip the LED strip along the clear guide into the connector, insert 2 pin wire (18-22 AWG) into the slot on the wire connection side, firmly press down the black button. Just like this, it forms a strong mechanical and electrical connection between LED strip and wire! The connection is made as this: the connector pierces through the copper solder pads of the LED strip, and the angled copper blades within the connector slice through the wire jacket without cutting the actual wire inside. There is no need for any soldering work.

    The clear guide for the LED strip will not block the light, allowing the connector compatible for LED strips of high LED density, up to 160 LEDS per meter.

    Product Features

    • Super slim 2 pin LED strip connector.
    • 5 Amps current rating.
    • For 5V, 12V, 24V or 36V DC LED strip light.
    • Create tight and secure connection.
    • Flame retardant material.
    • Fit most LED aluminum channel profiles.

    For more choices of indoor or waterproof LED strip connectors, please see the LED strip connector category.

    Recommended Readingļ¼š
    How to install LED strip lights?

    Specifications


      Model:  strip-to-wire-super-slim
      Finish:  Clear White
      LED strip:  10mm wide, single color, max 160 LEDs/m
      Connector Size:  15.4x11.5x4.3 mm (0.61x0.45x0.17 in)
      Amperage:  5 Amps
      Voltage:  5V, 12V, 24V, 36V DC
      For Wire:  18-22 AWG
      Rating:  CE, RoHS
      Material:  Flame retardant
