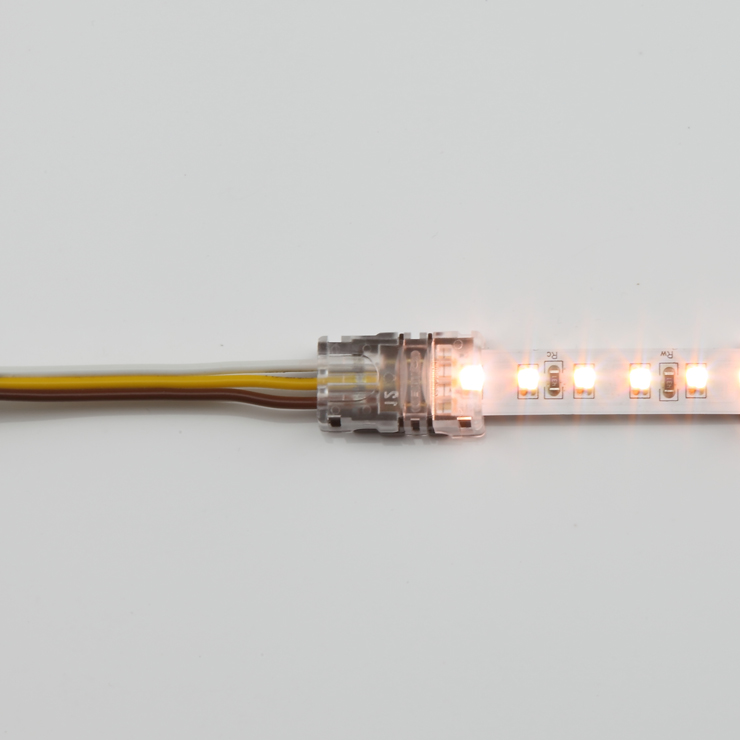

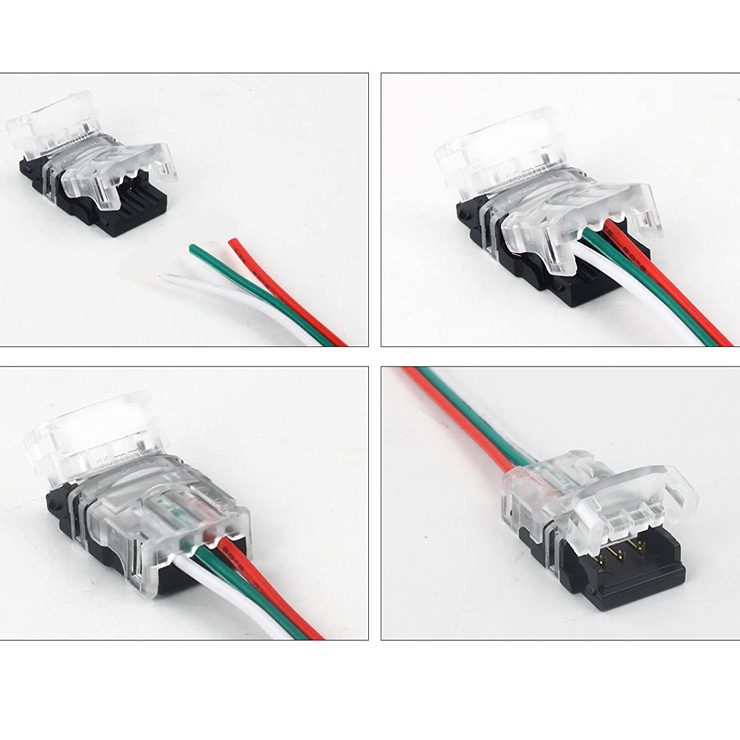

3 Pin LED Strip to Wire Solderless Connector - HippoThis 3 pin LED connector is ideal to join tunable white LED strip to 3 pin wires, making a perfect strip to wire connection without the need of soldering. It is often used to connect tunable white LED strip to controller. Also we can use two of these strip to wire connectors to make a strip to strip jumper with desired length of 3 pin wires in between. This 3 pin LED connector is suitable for installing 10 mm wide tunable white LED strip, with LED density of maximum 160 LEDs per meter. This strip to wire solderless connector is easy to use. Just cut the tunable white LED strip along the cutting line, open the connector cap, slide the tunable white LED strip into the proper position, and clip down the cap. The inner copper blades in the connector pierce through the copper solder pads on the LED strips, making permanent connection. On the other end, put 3 pin wire between the angled copper blades and the connector cap, clip down the cap. The inner copper blades pierce through wire jacket, but not cut the actual wire inside the jacket, to make permanent connection with 3 pin wires. It is that easy that you have made a perfect strip to wire connection. TIPS: It is noted that some wires have thicker jackets than others. When the inner blades can't cut through the thick wire jacket, there is a fake connection where the inner copper blades have no contact with the actual wire. In this case, we need use a utility knife or wire stripper to help cut through the jacket, but not to remove the jacket from the wire. 3 Pin LED wires are sold separately. Product Features
For more choices of indoor or waterproof LED strip connectors, please see the LED strip connector category.
