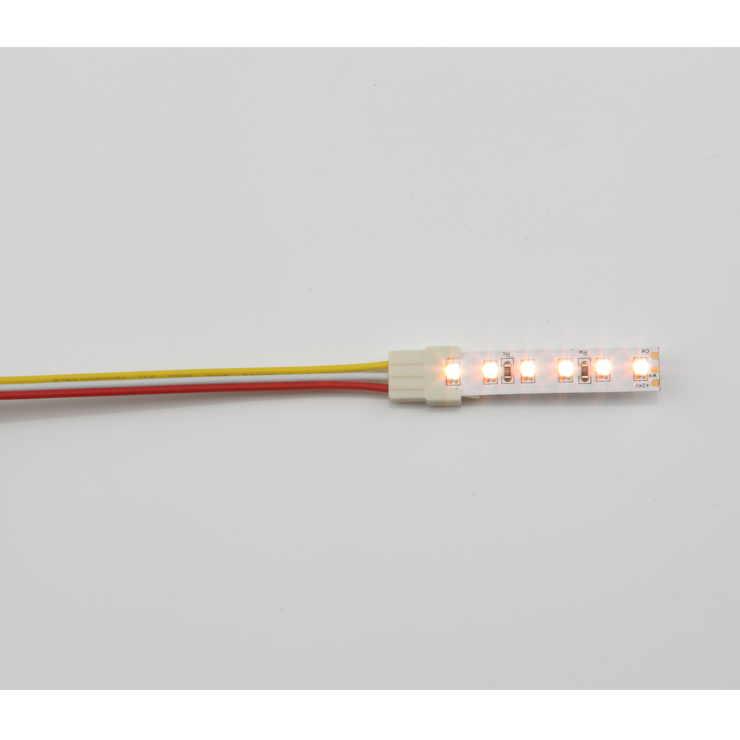

3 Pin LED Strip to Wire Solderless Connector - Slim

This 3 pin LED connector is ideal to join tunable white LED strip to 3 pin wires, making a perfect strip to wire connection without the need of soldering. It is often used to connect tunable white LED strip to controller. The slim design makes it fit most LED aluminum channels. This 3 pin LED connector is suitable for 10mm wide tunable white LED strip, with LED density of maximum 160 LEDs per meter.

Just cut the LED light strip along the cutting line, slide the LED strip end along the guide into the connector, fold over the clip cap on the back, and lock it into place. It just creates a secure solderless connection so easy!

The unique back clip design makes the connection tight. More importantly, compared to other connectors on the market, it offers larger area of contact between the LED strip copper solder pads and the copper pads inside the connector. The larger area of contact allows better electricity flow, ensuring the best performance of your strip lights. The connector allows 6 Amps max current, ideal for high output LED strip light installation.

The connector body is made of flame retardant nylon that prevents or retards the propagation of fire.

Product Features

• 3 pin (3 conductors) strip to wire LED solderless connector.
• For tunable white LED strip lights that are 10mm wide.
• For LED strip with LED density of maximum 160 LEDs per meter.
• Slim body design of 12.4 mm (0.49 in) wide, suitable for use in most LED aluminum channels.
• Come with 20 AWG wire. Total 6.3 inches (160 mm) long.
• 6 Amps max, suitable for high output LED strips.
• 12, 24V, 36V DC.
• Create tight, secure, permanent connection.
• Flame retardant material.

For more choices of indoor or waterproof LED strip connectors, please see the LED strip connector category.
