3 Pin LED Strip to Strip Solderless Connector - Slim
  • 3 Pin LED Strip to Strip Solderless Connector - Slim
  • 3 Pin LED Strip to Strip Solderless Connector - Slim
  • 3 Pin LED Strip to Strip Solderless Connector - Slim
  • 3 Pin LED Strip to Strip Solderless Connector - Slim
View All photos
3 Pin LED Strip to Strip Solderless Connector - Slim
Model: strip-to-strip-3p-slim
  • Quantity
  • $1.50



    3 Pin LED Strip to Strip Solderless Connector - Slim

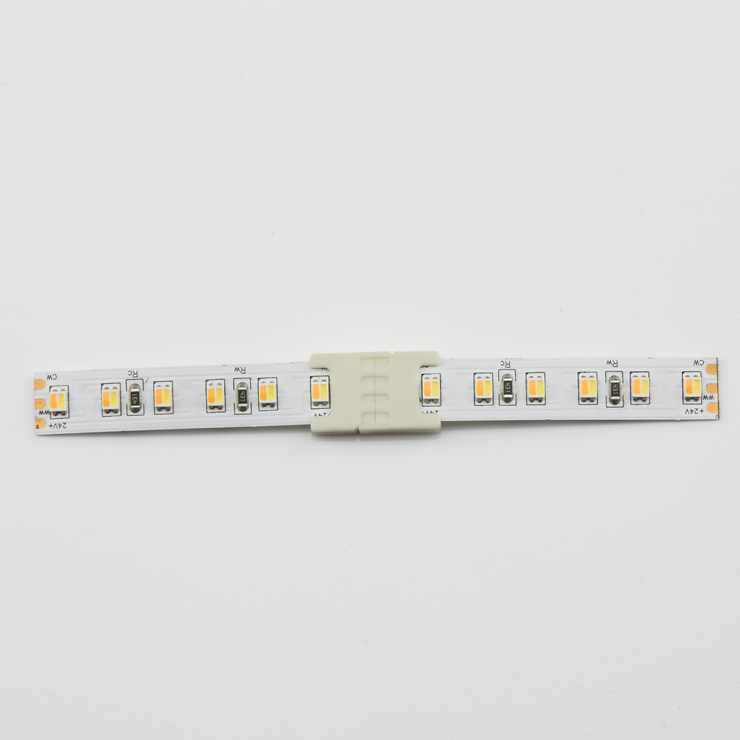

    This 3 pin solderless LED connector is ideal to join two pieces of tunable white LED strip lights right next each other, making a perfect straight connection without soldering. The slim design makes it fit most LED aluminum channels. This 3 pin LED connector is suitable for installing 10 mm wide tunable white LED strip, with LED density of maximum 160 LEDs per meter.

    Just cut the LED light strip along the cutting line, slide the LED strip end along the guide into the connector, fold over the clip cap on the back, and lock it into place. It just creates a secure solderless connection so easy!

    The unique back clip design makes the connection tight. More importantly, compared to other connectors on the market, it offers larger area of contact between the LED strip copper solder pads and the copper pads inside the connector. The larger area of contact allows better electricity flow, ensuring the best performance of your strip lights. The connector allows 6 Amps max current, ideal for high output LED strip light installation.

    The connector body is made of flame retardant nylon that prevents or retards the propagation of fire.

    Product Features

    • 3 pin (3 conductors) strip to strip LED connector.
    • For tunable white LED strip lights that are 10mm wide.
    • For LED strip with LED density of maximum 160 LEDs per meter.
    • Slim body design of 12.4 mm (0.49 in) wide, suitable for use in most LED aluminum channels.
    • 6 Amps max, suitable for high output LED strips.
    • 12, 24V, 36V DC.
    • Create tight and secure connection.
    • Flame retardant material.

    For more choices of indoor or waterproof LED strip connectors, please see the LED strip connector category.

    Recommended Readingļ¼š
    How to install LED strip lights?

    Specifications


      Model:  strip-to-strip-3p-slim
      Finish:  White
      Number of Conductors:  3
      LED strip:  Tunable White, 10mm wide, max 160 LEDs/m
      Amperage:  6 Amps Max
      Voltage:  5V-36V DC
      Connector Size:  20.6x12.4x4.5 mm (0.81x0.49x0.18 in)
      Rating:  CE, RoHS
      Material:  Flame retardant nylon and copper
