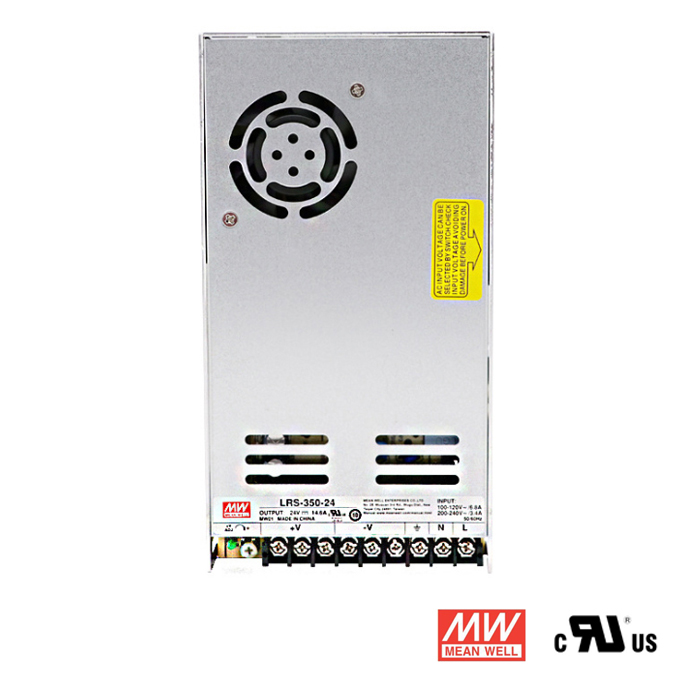

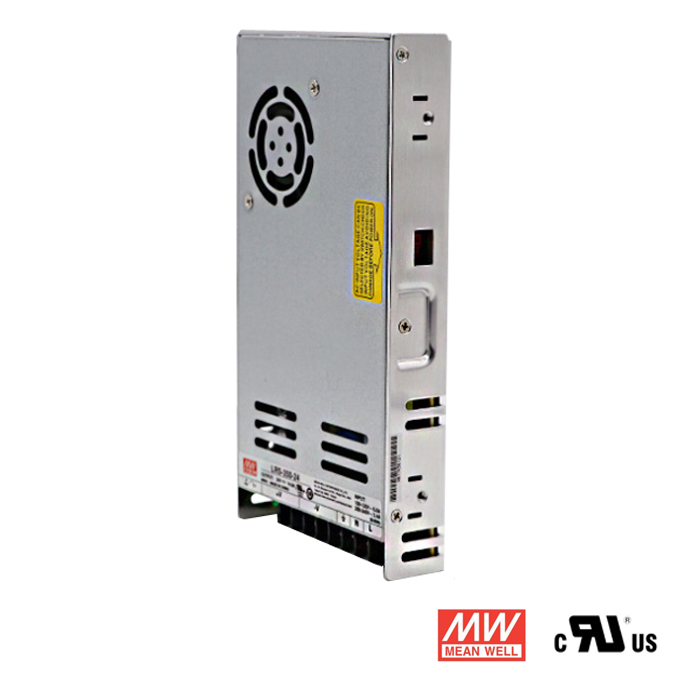

24V 14.6A 350Watt LED Power Supply, Mean Well LRS-350-24

LRS-350-24 is an enclosed AC-DC power supply, an extremely popular LED transformer that provides constant voltage power for 24V LED strip lights. It has a low-profile design (30mm, 1.18in) and uses 115Vac or 230Vac input (selected by a switch). In addition to the high efficiency up to 89%, the built-in long-life cooling fan enables the LRS-350 to work on full load in the temperature range -25 ~ +70°C (-13°F ~ +158°F). It has extremely low no-load power consumption and complies with UL 60950-1 safety, making it easy to pass various design and installation requirements. LRS-350 has complete protection functions and resistance to 5G vibration, providing a cost-effective solution for various residential and commercial applications.

Product Features

• MEAN WELL LRS-350-24 1U low profile(30mm, 1.18in), enclosed power supply
• AC input: 90~132Vac / 180~264Vac selectable by switch (suitable for 120/240Vac US)
• Output Voltage: Constant 24V DC
• Operating Temperature: -25~+70°C (-13°F ~ +158°F)
• Rating: UL60950-1 approved
• Protections: short circuit / over load / over voltage / over temperature
• Withstand 300Vac surge input for 5 seconds
• No load power consumption: less than 0.75W
• Cooling: Built-in DC fan forced air cooling, free air convection
• Withstand 5G vibration test
• Operate on up to 5,000 meter altitude
• Power on LED indicator
• High efficiency, highly reliable
• 100% full load aging test
• MEAN WELL 3 year warranty

If you need other 24V LED power supplies, we offer the 24V LED power supply series.
