Corner LED Strip Aluminum Channel, V Shape 6.56 FT (2 M) - C16

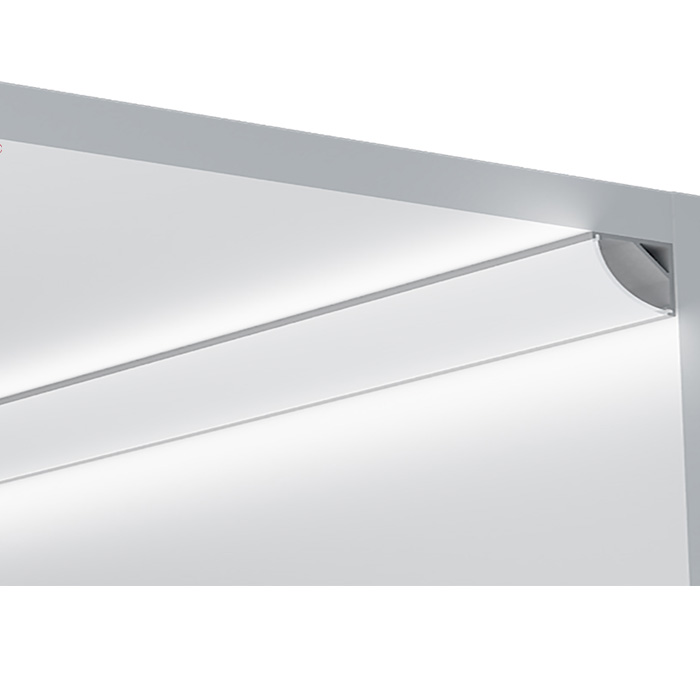

This LED strip aluminum channel is a corner mount profile, a small dimension V shape channel with cover as LED diffuser. The aluminum channel with diffuser establishes an amazingly beautiful look, helping provide better light diffusion, achieve dotless line of lighting, and avoid glare. It is made from high quality silver anodized aluminum, designed to work as heat sink, help manage heat dissipation of flexible or rigid LED strips and prolong the lifetime of the strips. It also provides a rigid housing for the LED strips, protecting from water, dust, UV radiation, weather conditions, and other unwanted damaging elements.

The extrusion channel comes as a complete kit, including a cover(diffuser lens), two end-caps and two mounting brackets.

This aluminum channel is typically corner mounted. It can be mounted using 3M double-sided tape, mounting brackets or screws. Mounting brackets can work as connectors to install two aluminum channels next to each other.

Product Features

• Made of high quality anodized aluminum with thick aluminum oxide layer.
• Works for LED light strip that is up to 10mm width.
• 6.56 FT (2 Meters) long, with frosted cover.
• Includes 2 end-caps, 2 mounting brackets.

If you need clear cover, it can be separately purchased here: clear cover 1616R. If you need more accessories, see here: End Cap C16, End Cap with Hole C16, Mounting Bracket C16.

For shorter length, see LED Strip Channel Model 4C16. For bigger dimension V shape aluminum profile, see model Model C30.

For your choices, here has various series of top quality LED strip lights.
