Ceiling LED Strip Channel with Diffuser, Drywall LED Strip Channel, 2 M (6.56 FT), W16C

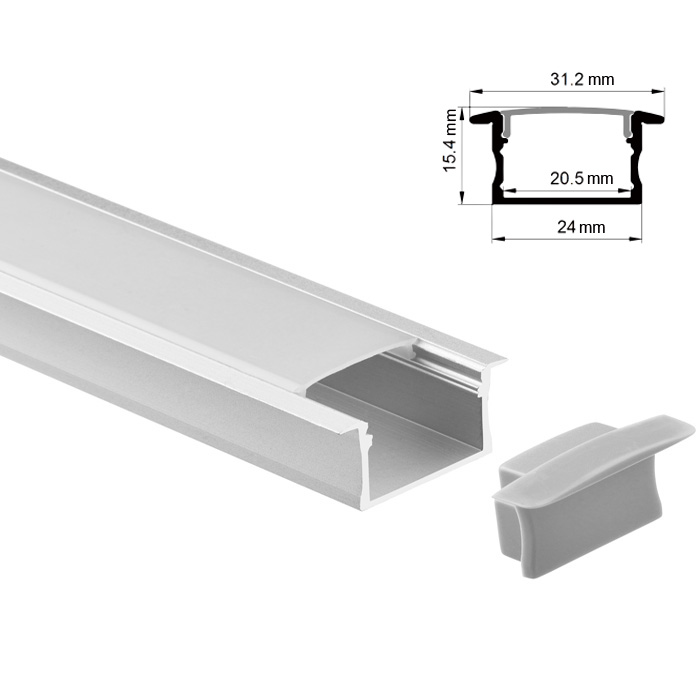

The LED ceiling channel is a popular aluminum profile for ceiling, with a plastic cover as diffuser. Designed with flange wings, it is also often used as drywall LED strip channel. The flange wings cover the drywall cutting edge and leave a neat installation finish. From the lower part of the flange wings to the bottom, the clearance is 0.49 inches, or 12.5 mm. It is ideal for 1/2 inch or 5/8 inch drywall.

The LED ceiling channel, together with the right LED strip lights, delivers dot-free continuous lighting. With the frosted cover included, it produces dotless lighting with LED strips of 120 LEDs/meter or 160 LEDs/meter. With 84 LEDs/meter, the lighting dots are vague and acceptable.

The LED strip ceiling channel is designed for LED strip light that is up to 20 mm wide. It is a perfect companion for installing LED strip lights.

The LED ceiling channel is made from high quality silver anodized aluminum, engineered to work as heat sink for better heat dissipation of flexible or rigid LED strips. The aluminum channel profile also provides rigid housing for the LED strips, protecting LED strip from splash water, dust, UV radiation, weather conditions, and other unwanted damaging elements.

Product Features

• 6.56 FT (2 Meters) LED ceiling channel with diffuser, can be cut to any length.
• For LED light strip that is up to 20 mm wide.
• With LED strip lights of 120 LEDs/meter or 160 LEDs/meter, it produces dot-free lighting. With 84 LEDs/meter, the lighting dots are vague and acceptable.

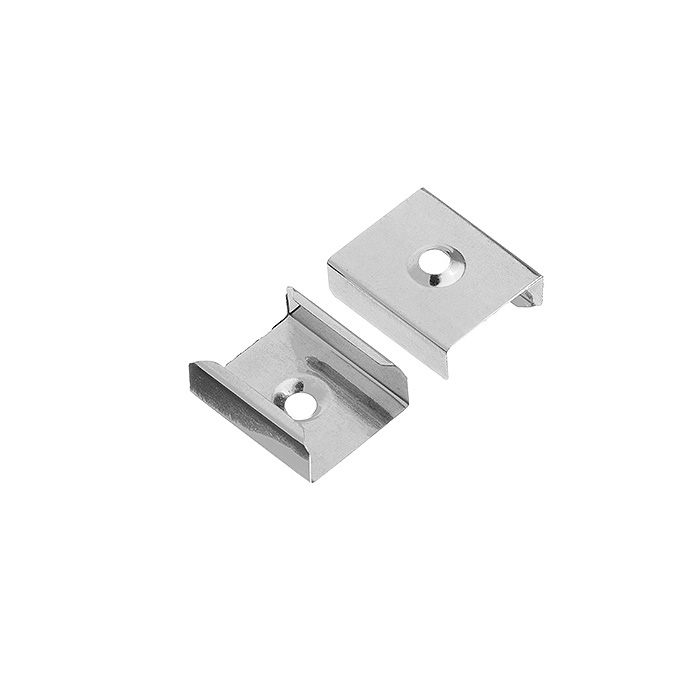

• This is a kit, comes with a frosted cover, 2 end caps, and 2 mounting clips.
• Extra end caps and mounting clips can be purchased separately.
• High quality anodized aluminum with thick layer of aluminum oxide for uniform beautiful appearance.

Many more models of LED strip channel are available for your LED strip project, from slim and low profile to mid and large sized, including surface mounted, recessed mounted, corner mounted and more. For more choices, please see LED strip channels.

For your convenience, we also offer various series of top quality LED strip lights.
