Multi-zone Wireless RF RGBW LED Strip Controller Kit, 8 Zone
  • Multi-zone Wireless RF RGBW LED Strip Controller Kit, 8 Zone
  • Multi-zone Wireless RF RGBW LED Strip Controller Kit, 8 Zone
  • Multi-zone Wireless RF RGBW LED Strip Controller Kit, 8 Zone
  • Multi-zone Wireless RF RGBW LED Strip Controller Kit, 8 Zone
View All photos
Multi-zone Wireless RF RGBW LED Strip Controller Kit, 8 Zone
Model: rgbw-8zone-kit
  • Quantity
  • $57.50


    Qty Discounts New Price
    1-5$57.50
    6-10$55.50
    11+$53.50

    Multi Zone Wireless RF RGBW LED Controller Kit for RGBW LED Strip - 8 Zone

    This multi zone RGBW wireless controller kit is perfect to control 1 to 8 zones of RGBW multi color changing LED strips, independently or synchronized. Select color or color changing modes, adjust brightness and color saturation, etc. It is versatile, and can also control white, single colored, RGB, RGB CCT, and tunable white LED strip lights. So it is also called 5-in-1 LED controller.

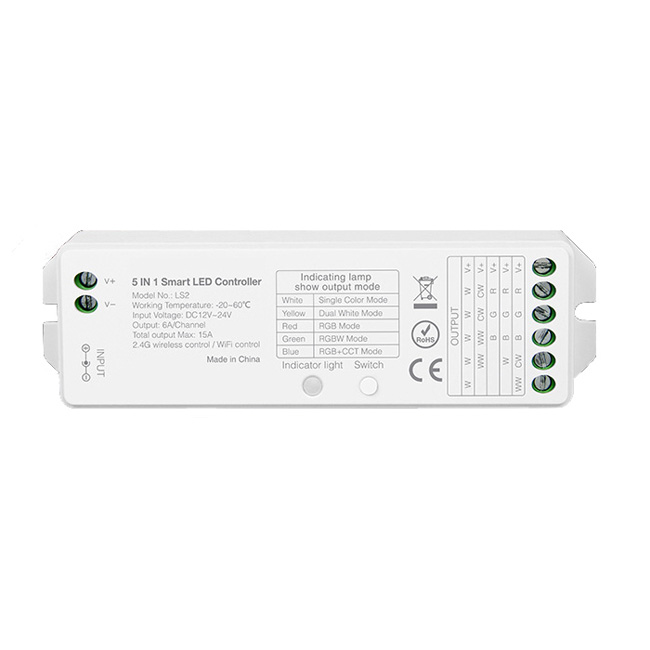

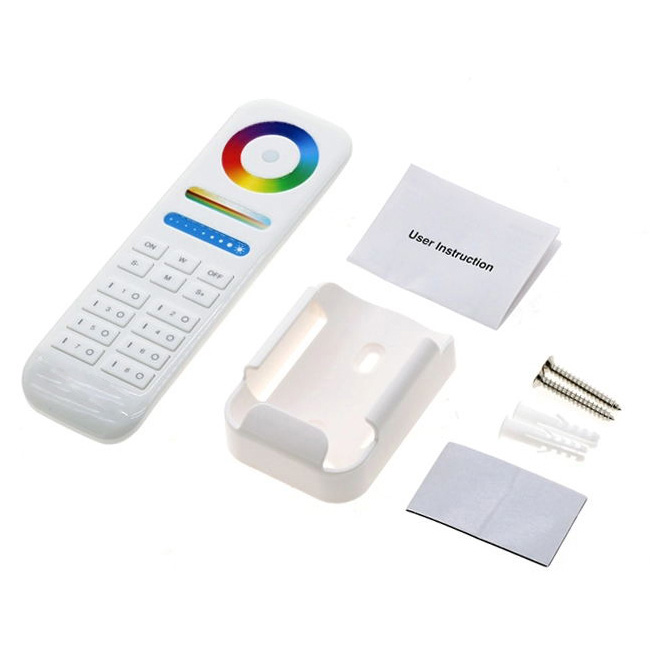

    The RGBW RF wireless controller kit includes one 8 zone RGBW remote control and one RGBW receiver(5-in-1 receiver). It has a control distance of 30 meters (100ft) from the remote to the receiver. Utilize RF 2.4GHz signal, do not need line of sight between remote and receiver. The control signal can go through barrier and walls.

    Product Features:

    • Control range is 100 ft, or 30 meters, from remote to receiver.
    • RF wireless, no line of sight needed. Signal goes through walls.
    • Multi zone (from 1 to 8 zones) control function.
    • Receiver Input Voltage: 12 or 24 DC.
    • Receiver Output Voltage: 12 or 24 DC.
    • Receiver Output Amp: 6A per channel, total 15A max.
    • Receiver Output Power (Watts): 180W or 360W

    Note: the remote operates on 2 x AAA batteries. Battery is NOT included.

    To improve control sensitivity, please keep your fingers off the touch color wheel when installing the batteries. During use, if found the touch color wheel is low in sensitivity, please change the batteries. Use the remote 3 seconds after battery changed.

    Don't use it in humid environment. Wide range metal and strong electromagnetic wave can affect its control distance.

    For this remote control, it can control countless the 5-in-1 wireless RGBW LED controller receivers. But one receiver can only be paired with at most 4 remotes.

    The load capacity depends on the controller receiver's wattage, not the remote.

    If you are setting up multi zone LED lighting, you can buy one multi zone RGBW control remote(8 zone), and multiple RGBW 5-in-1 receivers. Of course, you can buy multiple control remotes to place in different locations for convenience as well.

    For more choices, please see RGBW LED controller series.

    Specifications


      Model:  rgbw-8zone-kit
      Type:  RF, Wireless
      Multi Zone:  Control 1 to 8 zones
      Remote Input Volt:  3V (AAA battery x2, not included)
      Receiver Input Volt:  12V or 24V DC
      Light Color:  RGBW
      Output Channels:  5 CH
      Output Max Amps:  6A/CH, total 15A max.
      Output Voltage:  12V or 24V DC
      Output Wattage:  180W or 360W
      Control Range:  100ft(30 meters)
      Remote Sizes:  153x47x19mm (6 x 1.85 x 0.75in)
      Receiver Sizes:  124x37x23mm (4.9 x 1.45 x 0.9in)
      Waterproof:  IP20
      Rating:  CE, RoHS
      Warranty:  1 Year
