RGB CCT LED Strip Controller with Remote, Multi Zone
  • RGB CCT LED Strip Controller with Remote, Multi Zone
  • RGB CCT LED Strip Controller with Remote, Multi Zone
  • RGB CCT LED Strip Controller with Remote, Multi Zone
  • RGB CCT LED Strip Controller with Remote, Multi Zone
View All photos
RGB CCT LED Strip Controller with Remote, Multi Zone
Model: rgb-cct-8zone-kit
  • Quantity
  • $56.00


    Qty Discounts New Price
    1-5$56.00
    6-10$54.00
    11+$52.00

    RGB CCT LED Strip Controller with Remote, Multi Zone

    This RGB CCT LED Controller kit comes with a multi zone remote that allows you to enjoy controlling RGB CCT strip lights. It allows users to freely select static colors or color color changing modes, or enjoy pure white of any color temperature your RGB CCT LED strip allows, such as 2700K or 3000K warm white, 4000K neutral white, to 6500K cool white. It also easily blends white into any colors to produce richer and bolder bright colors. With this controller, you can easily create and control up to eight zones lighting for work, relaxing, or entertainment.

    The kit is ready for installation, items included:

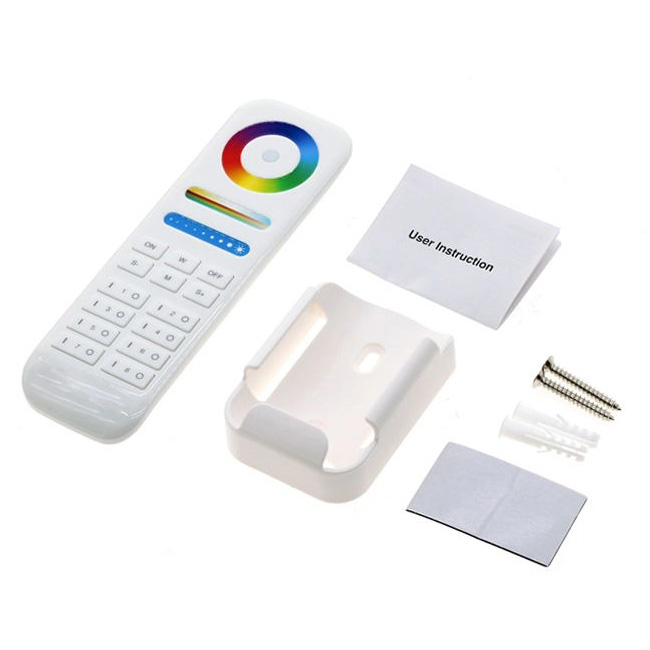

    • An RGB CCT LED Controller Remote, 8 zone capacity.
    • The remote comes with a holder, which can be installed on the wall.

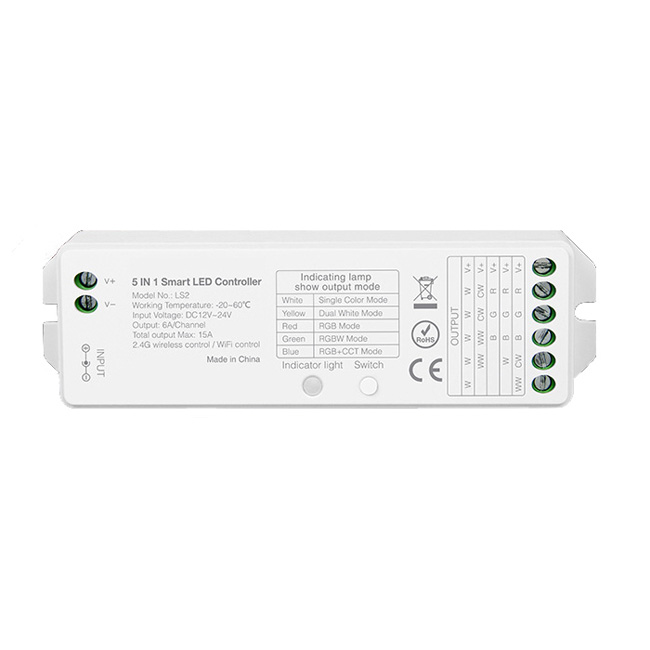

    • An RGB CCT 5-in-1 Receiver.

    Multi zone installation requires multiple receivers

    The controller is an RF remote equipped with highly sensitive touch color wheel and control buttons. Color wheel allows free selection of colorful lights. With the saturation bar, you easily blend white of various color temperature into any colored light, creating bolder and richer color lighting. By touching the white button, and slide or touch the saturation bar, you can enjoy pure white light of any color temperature your RGB CCT LED strips allow, such as 1800K golden yellow, 2400K orange, 2700K and 3000K warm white, 4000K neutral white, or 5000K, 6500K cool white.

    It has the ability to control up to 8 zones of RGB CCT LED strip lights. With a dedicated button for each zone, you can freely switch to the desired zone easily. Zones provide great flexibility to control different groups of lights independently or synchronously with a single controller. You can set each zone individually and create the perfect ambiance lighting. Turning off the zones when they are not needed saves energy. With the power off memory feature, the controller returns the lights to the previous status when powered on.

    RF control signals can go through walls. The remote control wirelessly connects with the RGB CCT 5-in-1 receiver. Wireless connection reduces wiring work and simplifies your light installation, saving labor and time. RGB CCT LED strips are wire connected to the receiver. One controller can be paired with unlimited receivers within its control range.

    The 5-in-1 RGB CCT receiver is also WiFi compatible. Adding a WiFi gateway transmitter, it turns into a WiFi RGB CCT controller, which can be controlled by smart phones, and integrated with Amazon Alexa or Google Assistant smart home lighting control systems.

    Product Features:

    • Highly sensitive touch color wheel and control buttons for easy selection and switch.
    • Control up to 8 zones, independently or synchronously. Dedicated buttons to easily switch to each zone.
    • Freely brightness adjustment.
    • Select static white color, or blend white into any colors, creating more vibrant bright colors.
    • Fine tune to enjoy pure white of any color temperature that your RGB CCT LED strip allows.
    • Power off memory function. Return to previous status when powered on.
    • The controller receiver has five channels. 180W or 360W output. 6 Amps/Channel, total 15 Amps Max.
    • The controller receiver uses 12-24V DC power.
    • Remote control operates on two AAA batteries (NOT included).
    • One remote can control an unlimited number of receivers within a control range of 30-meter (100 feet) radius in a benign electromagnetic environment. RF signal goes through walls.

    If you are setting up multi zone RGB CCT strip lighting, you need multiple RGB CCT 5-in-1 receivers. Of course, you can buy multiple remote controls to place in different locations for convenience as well. One receiver can only be controlled by 8 remote controls at most.

    For more choices, please see RGB CCT LED controller series.

    Specifications


      Model:  rgb-cct-8zone-kit
      Type:  RF, Wireless
      Multi Zone:  Control 1 to 8 zones
      Remote Input Volt:  3V (AAA battery x2, not included)
      Receiver Input Volt:  12V or 24V DC
      Light Color:  RGB CCT Tunable White
      Output Channels:  5 CH
      Output Max Amps:  6A/CH, total 15A max.
      Output Voltage:  12V or 24V DC
      Output Wattage:  180W or 360W
      Control Range:  100ft(30 meters)
      Remote Sizes:  153x47x19mm (6 x 1.85 x 0.75in)
      Receiver Sizes:  124x37x23mm (4.9 x 1.45 x 0.9in)
      Waterproof:  IP20
      Rating:  CE, RoHS
      Warranty:  2 Year
