RGB LED Controller Kit, Wall Mount, 8 Zone
  • RGB LED Controller Kit, Wall Mount, 8 Zone
  • RGB LED Controller Kit, Wall Mount, 8 Zone
  • RGB LED Controller Kit, Wall Mount, 8 Zone
  • RGB LED Controller Kit, Wall Mount, 8 Zone
  • RGB LED Controller Kit, Wall Mount, 8 Zone
  • RGB LED Controller Kit, Wall Mount, 8 Zone
View All photos
RGB LED Controller Kit, Wall Mount, 8 Zone
Model: rgb-kit-8zone-wall
  • Quantity
  • $78.00


    Qty Discounts New Price
    1-5$78.00
    6-10$75.00
    11+$72.00

    RGB LED Controller Kit, Wall Mount, Multi Zone

    This RGB LED Controller kit comes with an easy wall mount remote, and a controller receiver. The remote has an elegant panel made of stalinite glass. High precision touching ICs are built underneath. Touch control is as sensitive and steady as never before. The highly sensitive color wheel and dedicated buttons allow you to manage dynamic RGB color changing LED strips to the full extent at ease.

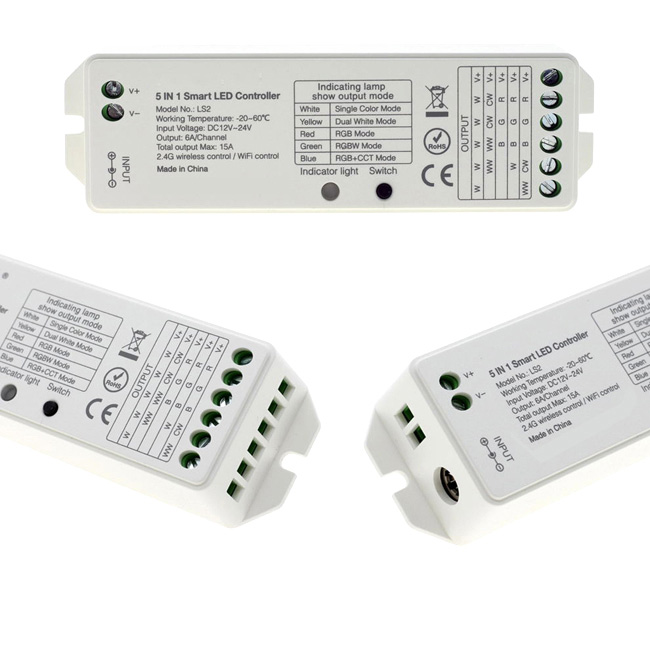

    Multi zone RGB LED strip installation requires multiple RGB 5-in-1 controller receivers. More Receivers can be bought separately. The matching receivers have auto-transmission function, relaying signal from one receiver to another, as long as they are within 100 ft (30 meters). That means not all the receivers have to be within 100 ft from the remote. The layout can be like this: the first receiver is within 100 ft from the remote, the second receiver is within 100 ft from the first receiver, and so on.

    wall mount multi zone led controller system

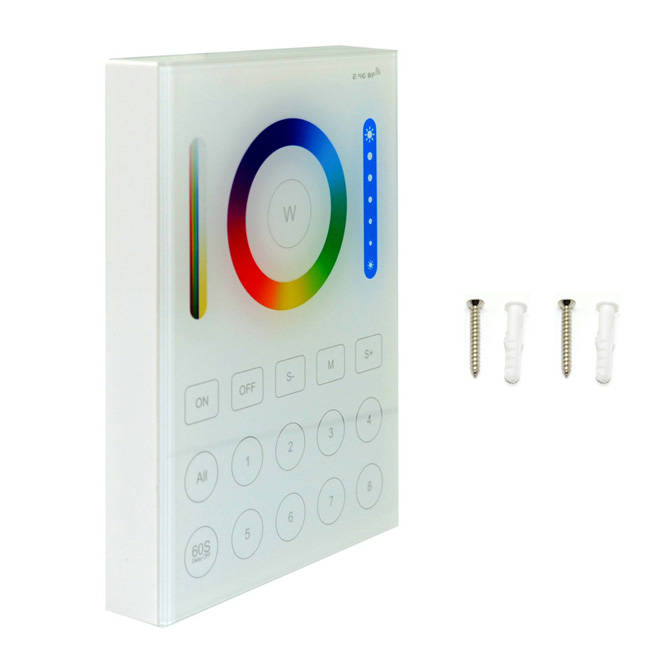

    Easy Installation. NO NEED to open a hole on the wall. The wall mount remote comes with a base panel. Use screws or double-sided tape to mount the base panel anywhere on the wall. The remote panel is then clip mounted onto the base panel. The base panel is fully hidden under the remote panel to present a beautiful installation finish.

    Easy color selection. The controller is an RF remote equipped with highly sensitive touch panel color wheel and dedicated control buttons. Color wheel allows free selection of colorful lights. A dedicated button is available to select white lighting.

    Multi zone function. It has the ability to control up to 8 zones of RGB LED strip lights. With a dedicated button for each zone, you can freely switch to the desired zone easily. Zones provide great flexibility to control different groups of lights independently or synchronously with a single controller. You can set each zone individually and create the perfect ambiance lighting. Turning off the zones when they are not needed saves energy. With the power off memory feature, the controller returns the lights to the previous status when powered on.

    RF control signals go through walls. The remote control wirelessly connects with the RGB 5-in-1 receiver. Wireless connection reduces wiring work and simplifies your light installation, saving labor and time. RGB LED strips are wire connected to the receiver. One controller can be paired with unlimited receivers within its control range.

    Product Features:

    • Highly sensitive, beautiful stalinite glass panel. White finish.
    • Touch color wheel and control buttons for easy selection and switch.
    • Control up to 8 zones, independently or synchronously. Dedicated buttons to easily switch to any zone.
    • Freely adjust brightness.
    • Dedicated button for 60 seconds delay turn off.
    • Power off memory function. Return to previous status when powered on.
    • Remote control operates on two AAA batteries (NOT included).
    • One remote can control an unlimited number of receivers within a control range of 30 meter (100 feet) radius in a benign electromagnetic environment. RF signal goes through walls.

    The controller receiver is WiFi compatible. To turn the controller into a WiFi controller, just need to add a compatible WiFi transmitter. The WiFi transmitter is an independent device that can be put any where with USB power port.

    For more choices, please see RGB LED controller series.

    Specifications


      Model:  rgb-kit-8zone-wall
      Type:  RF, Wireless
      Multi Zone:  Control 1 to 8 zones
      Remote Input Volt:  3V (AAA battery x2, not included)
      Receiver Input Volt:  12V or 24V DC
      Light Color:  RGB color changing
      Output Channels:  5 CH
      Output Max Amps:  6A/CH, total 15A max.
      Output Voltage:  12V or 24V DC
      Output Wattage:  180W or 360W
      Control Range:  100ft(30 meters)
      Remote Sizes:  146x106x20 mm (5.75 x 4.17 x 0.79 in)
      Receiver Sizes:  124x37x23mm (4.9 x 1.45 x 0.9in)
      Waterproof:  IP20
      Rating:  CE, RoHS
      Warranty:  1 Year
