Touch Screen RGBW Controller Pro Kit, 3 Zone, Wall Mount

This Multi Zone RGBW LED Controller Pro Kit allows you to enjoy controlling up to 3 zones of RGBW multi color strip lights. While you can enjoy the static white color, it is unique that you blend white light into RGB colors to create more vibrant bright colors. The kit includes a wall mount touch screen multi zone controller and a 4-in-1 Pro RGBW receiver. The controller is equipped with a highly sensitive touch screen of glass surface, sleek compact appearance that looks stylish for home.

With this RGBW touch controller, you can easily create atmosphere for relax or work whenever you wish. Choose the color you like via the touch color wheel, or you can use the dedicated buttons to select red, green, blue, and white colors individually, and adjust the light intensity. It offers 10 built-in dynamic color changing modes. Excitingly, by touching a button, you can also enjoy the warm white, neutral white, or cool white that is produced by the auto mixing of RGBW colors.

Fast switch to the desired zone easily via a dedicated button for each zone. Zones provide great flexibility to control different groups of lights independently or synchronously with a single controller. You can set each zone individually and create the perfect ambiance lighting. This way you can save energy by turning off the zones that are not needed. This multi zone RGBW Controller Pro has the power off memory feature. The lights will return to the previous settings when powered on.

The kit is ready for installation, items included:

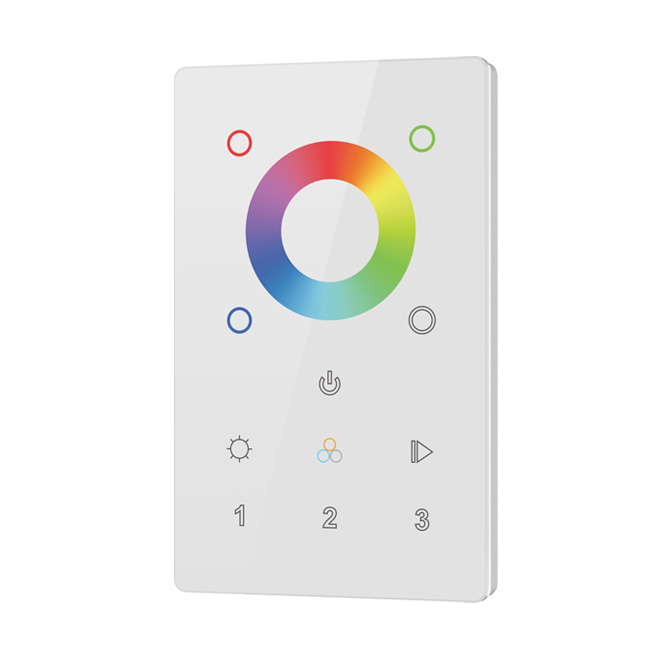

• A RGBW Touch LED Controller Pro, 3 zones, intuitive touch screen and buttons, wall mount

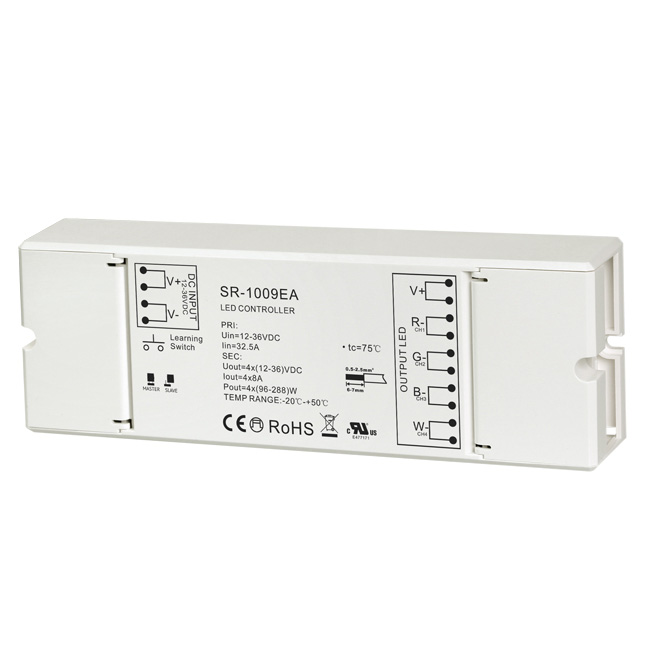

• A Pro RGBW Receiver

For installation, this Touch LED controller is to be wall mounted (two screws included). It easily fits in any common US household light switch box. Via RF control signals that can go through walls, the controller is to be wirelessly connected with the Pro RGBW 4-in-1 receiver. Wireless connection reduces wiring work and simplifies your light installation, saving labor and time. RGBW light strips are wire connected to the receiver. One controller can be paired with unlimited receivers within its control range. This wireless receiver can also be used for white, tunable white, and RGB LED strip lights, so it is called 4 in 1 Receiver.

The Pro 4-in-1 RGBW receiver is also WiFi compatible. Adding a WiFi gateway transmitter, it turns into a WiFi RGBW controller, which can be controlled by smart phones via an app, and integrated with Amazon Alexa, Google Assistant, and smart home lighting control system.

Product Features:

• Highly sensitive glass touch screen, white finish.
• Touch color wheel and control buttons for easy selection and switch.
• Control multi zone up to 3 zones, independently or synchronously. Dedicated buttons for each zone to easy switch.
• Dedicated buttons for individual color selection and brightness adjustment of red, green, blue and white colors.
• Touch a button to easily enjoy warm, neutral and cool white color mixed by RGBW colors.
• Power off memory function. Return to previous setting when powered on.
• 10 built-in dynamic color changing modes.
• One multi zone Pro RGBW controller can control an unlimited number of Pro RGBW receivers within a control range of 30-meter (100 feet) radius in a benign electromagnetic environment. RF signal goes through walls.
• 12-24VDC input for both Controller and Receiver.
• High capacity. 384W or 768W output.
• Wall mount. Fit in any standard US household electrical light switch box.

If you are setting up multi zone LED lighting, you can buy multiple Pro RGBW LED Receivers. Of course, you can buy multiple of this Multi Zone Touch Screen Pro RGBW Controllers to install in different locations for convenience as well. One receiver can only be controlled by 8 remote controls at most.

For more choices on RGBW controllers, please see RGBW LED controller series.
