RGB CCT LED Controller Kit, Wall Mount, Multi Zone

The wall mount remote is designed with a control panel made of stalinite glass, presenting a modern and aesthetic look. High precision touching ICs are built underneath. Touch control is as sensitive and steady as never before. The highly sensitive color wheel and dedicated buttons allow you to manage dynamic RGB CCT LED strips to the full extent at ease.

The remote allows users to freely select static colors or color color changing modes, or enjoy pure white of any color temperature your RGB CCT LED strip allows, such as 2700K or 3000K warm white, 4000K neutral white, to 6500K cool white. It also easily blends white into any colors to produce richer and bolder bright colors. With this controller, you can easily create and control up to eight zones lighting for work, relaxing, or entertainment.

This RGB CCT controller kit is ready for installation, items included:

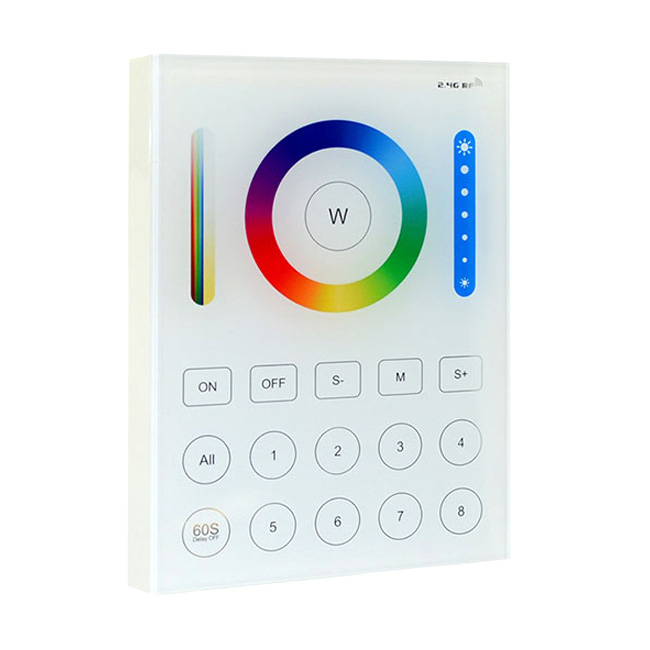

• An RF remote control panel with elegant stalinite glass cover. Wall mount.
• A Wireless Receiver, 6 Amps/CH, 15 Amps total max output.

Multi zone RGB CCT LED strip installation requires multiple RGB CCT 5-in-1 LED receivers. More Receivers can be bought separately. The matching receivers have auto-transmission function, relaying signal from one receiver to another, as long as they are within 100 ft (30 meters). That means not all the receivers have to be within 100 ft from the remote. The layout can be like this: the first receiver is within 100 ft from the remote, the second receiver is within 100 ft from the first receiver, and so on.

Easy Installation. NO NEED to open a hole on the wall. The wall mount remote comes with a base panel. Use screws or double-sided tape to mount the base panel anywhere on the wall. The remote panel is then clip mounted onto the base panel. The base panel is fully hidden under the remote panel to present a beautiful installation finish.

Easy color selection. The controller is an RF remote equipped with highly sensitive touch panel color wheel and control buttons. Color wheel allows free selection of colorful lights.

Blend white into colors. With the saturation bar, you can easily blend white of various color temperatures into any colored light, creating bolder and richer colored lighting.

Enjoy pure white of any color temperature. By touching the white button, and slide or touch the saturation bar, you can enjoy pure white light of any color temperature your RGB CCT LED strips allow, such as 1800K golden yellow, 2400K orange, 2700K and 3000K warm white, 4000K neutral white, or 5000K, 6500K cool white.

Multi zone function. It has the ability to control up to 8 zones of RGB CCT LED strip lights. With a dedicated button for each zone, you can freely switch to the desired zone easily. Zones provide great flexibility to control different groups of lights independently or synchronously with a single controller. You can set each zone individually and create the perfect ambiance lighting. Turning off the zones when they are not needed saves energy. With the power off memory feature, the controller returns the lights to the previous status when powered on.

RF control signals go through walls. The remote control wirelessly connects with the RGB CCT 5-in-1 receiver. Wireless connection reduces wiring work and simplifies your light installation, saving labor and time. RGB CCT LED strips are wire connected to the receiver. One controller can be paired with unlimited receivers within its control range.

Product Features:

• Highly sensitive, beautiful stalinite glass panel. White finish.
• Touch color wheel and control buttons for easy selection and switch.
• Control up to 8 zones, independently or synchronously. Dedicated buttons to easily switch to any zone.
• Freely adjust brightness.
• Select static white color, or blend white into any colors, creating more vibrant bright colors.
• Fine tune to enjoy pure white of any color temperatures that your RGB CCT LED strips allow.
• Dedicated button of 60 seconds delay turn off.
• Power off memory function. Return to previous status when powered on.
• Remote control operates on two AAA batteries (NOT included).
• One remote can control an unlimited number of receivers within a control range of 30 meter (100 feet) radius in a benign electromagnetic environment. RF signal goes through walls.

The controller receiver is WiFi compatible. To turn the controller into a WiFi controller, just need to add a compatible WiFi transmitter. The WiFi transmitter is an independent device that can be put any where with USB power port.

For more choices, please see RGB CCT LED controller series.
