WiFi RGB CCT LED Controller Kit, Multi Zone

This WiFi RGB CCT LED Controller kit is a smart controller kit that enables users to control RGB CCT LED strip lights any where and any time. The WiFi controller is compatible with Alexa or Google Assistant, and can be controlled by smart phone or remote. It is also able to use voice control. The handheld remote control is engineered with high precision touching ICs. The highly sensitive color wheel and dedicated buttons allow you to manage dynamic RGB CCT LED strips to the full extent at ease.

This WiFi controller kit is ready for installation, items included:

• An RF remote control, handheld style. It comes with a remote holder, which can be placed on the wall.

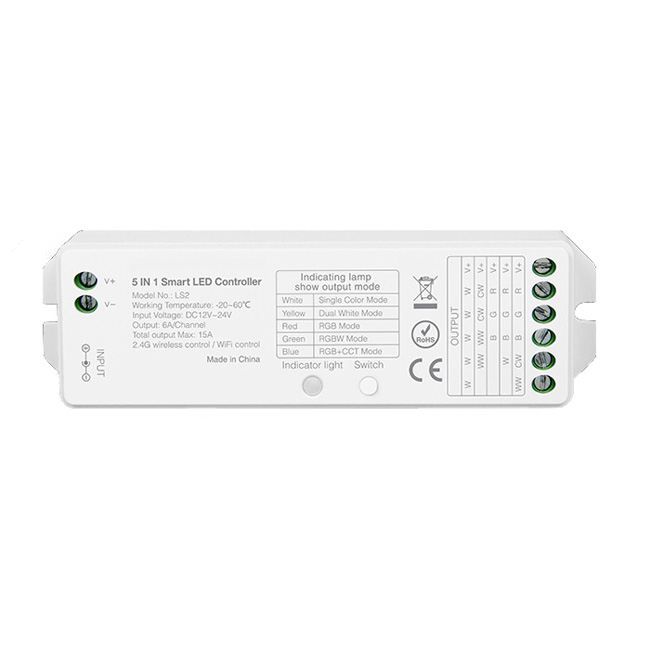

• A Wireless Controller Receiver, 6 Amps/CH, 15 Amps total max output.

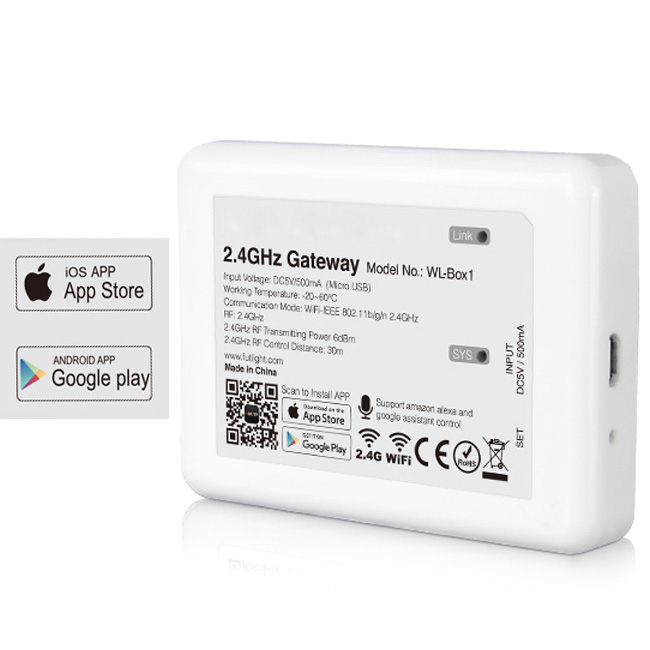

• A 2.4G Gateway WiFi Transmitter.

The remote allows users to freely select static colors or color color changing modes, or enjoy pure white of any color temperature your RGB CCT LED strip allows, such as 2700K or 3000K warm white, 4000K neutral white, to 6500K cool white. It also easily blends white into any colors to produce richer and bolder bright colors. With this controller, you can easily create and control up to eight zones lighting for work, relaxing, or entertainment.

Multi zone RGB CCT LED strip installation requires multiple RGB CCT 5-in-1 LED receivers. More Receivers can be bought separately. RF remote and the WiFi transmitter has a control range of 100 ft (30 meters). The matching receivers have auto-transmission function, relaying signal from one receiver to another, as long as they are within 100 ft distance. That means not all the receivers have to be within 100 ft from the RF remote or the WiFi transmitter. The layout can be like this: the first receiver is within 100 ft from the remote or the WiFi transmitter, the second receiver is within 100 ft from the first receiver, and so on.

The WiFi controller is Alexa and Google Assistant compatible. Use smart phone to control your lights any where and any time. Voice control is available as well. The WiFi transmitter gateway is an independent device that can be put any where with USB power port.

Easy color selection. The controller is an RF remote equipped with highly sensitive touch panel color wheel and control buttons. Color wheel allows free selection of colorful lights.

Blend white into colors. With the saturation bar, you easily blend white of various color temperatures into any colored light, creating bolder and richer colored lighting.

Enjoy pure white. By touching the white button, and slide or touch the saturation bar, you can enjoy pure white light of any color temperature your RGB CCT LED strips allow, such as 1800K golden yellow, 2400K orange, 2700K and 3000K warm white, 4000K neutral white, or 5000K, 6500K cool white.

Multi zone function. It has the ability to control up to 8 zones of RGB CCT LED strip lights. With a dedicated button for each zone, you can freely switch to the desired zone easily. Zones provide great flexibility to control different groups of lights independently or synchronously with a single controller. You can set each zone individually and create the perfect ambiance lighting. Turning off the zones when they are not needed saves energy. With the power off memory feature, the controller returns the lights to the previous status when powered on.

RF and WiFi control signals go through walls. The remote control wirelessly connects with the RGB CCT 5-in-1 receiver. Wireless connection reduces wiring work and simplifies your light installation, saving labor and time. RGB CCT LED strips are wire connected to the receiver. One controller can be paired with unlimited receivers within its control range.

Product Features:

• Use smart phone, or remote to control lights.
• Alexa or Google Assistant compatible. Voice control.
• Highly sensitive RF remote control. Handheld. White finish.
• Touch color wheel and control buttons for easy selection and switch.
• Control up to 8 zones, independently or synchronously. Dedicated buttons to easily switch to any zone.
• Freely adjust brightness.
• Select static white color, or blend white into any colors, creating more vibrant bright colors.
• Fine tune to enjoy pure white of any color temperatures that your RGB CCT LED strip allows.
• Dedicated button of 60 seconds delay turn off.
• Power off memory function. Return to previous status when powered on.
• Remote control operates on two AAA batteries (NOT included).
• The WiFi transmitter and the RF remote can control an unlimited number of receivers within a control range of 30-meter (100 feet) radius in a benign electromagnetic environment. RF signal goes through walls.

If you are setting up multi zone RGB CCT strip lighting, you need multiple RGB CCT 5-in-1 LED receivers. Of course, you can buy multiple remote controls to place in different locations for convenience as well. One receiver can be controlled by 8 remote controls at most.

For more choices, please see RGB CCT LED controller series.
