12V LED Strip Lights

12V LED Strip Lights

Before buying 12V LED light strips, you need to know if the 12V LED strip is the best choice for your project.

12V LED strip lights were the first low voltage LED strip lights on the market. It has been very popular since it was born. The 12V LED strip, with both indoor and outdoor waterproof versions, has a deep influence on our everyday lives. Let's take a look at its advantages and disadvantages, the scope of use, etc., to decide whether it is the best strip light for your project. Are you looking for indoor or waterproof 12 Volt LED rope lights? They are the same as 12V LED strip lights, just some people call it differently. Also, low voltage rope lighting refers to 12V or 24V LED strip lighting.






12V LED strip light features

1. Safety. 12V is the safe voltage for human body, and it can be used for applications where safety requirements are critical.

2. Long lifetime. 12V light strip circuits operate on DC low voltage. The low voltage operation makes LEDs service lifetime longer.

3. No flicker. Since the low voltage LED strip light uses DC voltage, it avoids the stroboscopic phenomenon that occurs in the use of AC light products.

4. Power supply easy to find on the market. 12V power supply is very common in the market. Note that you need to use 12VDC power supply or power adapter. 12V LED strip light cannot be directly connected to 110V power.

Recommended Readingļ¼š
How to choose LED controllers?
What can RGB and RGBW strip lights do?
All inclusive guide of LED strip purchase

12V vs 24V LED strip light

Although the 12V and 24V LED strips are all low voltage LED strip lights, there are significant differences such as cutting increments, luminous efficacy, suitability for long run installation, requirement for LED controllers and power supplies, etc. When you don't know how to choose between 12V and 24V strip lights, you can read this article.

12V LED Strips vs 24V LED Strips

Cutting increment

The LED strip lights are made by connecting a plurality of minimum cuttable circuit units. The minimum cuttable unit is known as cutting increment. Under the condition that the LED density is the same, the length of the cuttable unit for a 12V LED strip light is generally half of that for the 24V LED strip. For example, RGB strip lights with the density at 60 LEDs/meter, the cutting increment is 2 inches(51mm) for 12V version, and 4 inches for 24V version.

Most LED strips use LEDs that have a voltage 2.7-3.3V DC. Under the 12V voltage design of LED light strip, one cuttable circuit unit (cutting segment) can arrange three light sources(LEDs). The remaining voltage is shared by resistors and other components. This is the so-called Three LEDs One Cut, a technology term for the cutting increments of LED light strip.

Because there will be an inevitable voltage drop along the strip, the length of the LED strips consisting of multiple 12V cuttable units will generally not exceed 16.4 ft (5 m). Significant voltage drop will occur if it exceeds 16.4ft(5m).

Under the 24V voltage design, one cuttable circuit unit can arrange six LEDs, and the remaining voltage is shared by resistors and other components. This is the so-called Six LEDs One Cut. Similarly, due to voltage drop issues, multiple 24V cuttable units typically can be connected to make a light strip with the length up to 32.8 ft (10 m).


How does the cutting increment affect the LED strip light installation?

Since the LED light strip has a cutting increment, cutting LED strip is limited to only be cut at the pre-marked places along the strip. This limitation affects how the LED strip lights are installed, specifically for the length of installation.

How cutting increment affects LED strip installation

It could be a right match of cutting line with the application surface for 12V LED strip lights, as shown in above picture. For 24V LED strips, it could be more complicated. If the mounting surface ends right in the middle of a cuttable segment, there are two options for the installation length of the light strip.

Either one less cuttable segment as the 24V - Case A in above picture, resulting in 1/2 segment length of the mounting surface without LEDs, or one more cuttable segment as the 24V - Case B in above picture, causing 1/2 segment to be beyond the mounting surface.

So the length accuracy requirements of your installation can affect your strip light choice. If the cutting increment of 24V LED strip lights is too long and causes inconvenience to your installation, you can choose 12V version.

In order to meet the requirements of the installation accuracy, we have specially customized 5050 white light strip. Its cutting length is very short. The 12V 5050 white LED strip is amazingly able to achieve One LED One Cut, a cutting increment of 0.67 inch (17mm). The 24V 5050 white LED strip is Two LEDs One Cut, a cutting increment of 1.34 inch(34mm).

The cutting increments of these two versions are much shorter than the usual 2 inches or 4 inches cutting increment of normal LED strips and provides the most accurate length for your installation. The characteristics of this type of LED are: the LED chip size is large, the light-emitting surface is large, and the CRI is higher than 95.


LED strip luminous efficiency

Between the two versions of low voltage LED strip lights, the luminous efficiency of the 24V LED strip is higher than that of 12V LED strip. Usually, the LED strip circuit has resistance and generates heat. The dissipated heat is the part of the energy that is wasted. If the power of the two strips is the same, the strip light that wastes less power has the higher luminous efficiency, because more electric energy is actually used to emit light.

Under the same LED density, same length, and same wattage, the 12V LED strip light will draw twice amount of current as the 24V LED strip. For example, a 5m long LED strip with 120 LEDs per meter has the power 50 W. The current with the 12V design is 50W/12V = 4A, while with the 24V design is 50W/24V = 2A.

The larger the current is, the more heat is generated on the circuit, the more energy is wasted by form of thermal energy, the less energy is actually used to emit light. Therefore, the luminous efficiency of the 12V LED strip is lower than that of 24V.


Which one is more suitable for a longer run installation?

Typically 24V LED strips are the better low voltage LED strip lights for longer run installation. For LED strips of the same length and the same LED density, the voltage drop of 12V is larger than that of 24V. As in the above example, the current of the 12V 50W light strip is 4A, and the current of the 24V strip is 2A. Due to the smaller current drawn, the 24V LED strip requires a smaller gauge for the conductors.

The 12V LED strip light draws a larger current, and the electronic components on the strip have resistance, therefore the shared voltage is higher, and the voltage drop is larger compared to the 24V strip. 24V LED strip has the relatively smaller current, and the voltage drop is smaller.

Due to the voltage drop, the maximum continuous run length of the LED strip is inversely proportional to the current, that is, the smaller the current is, the larger the maximum continuous length. Therefore, the maximum continuous run length of 24V LED strips typically is twice as that for 12V LED strips.

The 24V LED strip draws smaller current. If there are multiple light strips parallel installed, the total current is only half of the 12V. This is a factor to consider in the actual installation. If the current limit at the power feed point is small, 24V is your better choice.


Brightness

The brightness of the 12V LED strip light will only be up to a level and cannot be very high. The number of LEDs ranges from 30 to 60 per meter. By electrics theory, the voltage drop is larger for the low voltage LED strip light of 12V, the power cannot be designed to be high, so the brightness will not be very high, even with high-efficacy LEDs.

If the power is high, the brightness will decrease greatly along the strip. So the 120 LEDs per meter design can only choose 24V as operation voltage. If your project does not require high brightness, 12V is also a good choice.


Power supply options

Whether it is a 12V power adapter or a 12V professional power supply, 12V power sources have more choices on the market than 24V power sources, and are easier to find as well.

Recommended Readingļ¼š
All important factors about how to choose power adapter
Choose a quality power supply for LED strip light


LED strip controller selection

Usually the LED controller is universal for 12V or 24V light strips. RGB LED controllers usually work for both 12V and 24V RGB strip lights. But there are still some power differences. For example, a 6A controller is at 12V operation voltage, its power is 72 watts, while at 24V operation voltage, its power is 144 watts.


LED strip light accessories for installation

Installation accessories such as LED strip light connectors and LED aluminum extrusions, typically work well for both 12V and 24V strips.


Application range

12V DC LED strip lights are generally more widely used than 24V strips.

Many electrical systems operate on 12V DC. For example, many batteries for vehicles, RVs and boats operate at 12V DC, which makes it easy to handle these applications with 12V LED strip lights, because no additional transformers or power supplies are needed to convert the voltage. They can be directly installed into the electrical system. For more information about how to wire LED strip to power supplies, please see LED strip light installation guide: step by step installation instruction.


12V LED strip lights for cars

12V LED strip lights are widely used for cars, mostly because that the cars have limited space and the 12V LED strip is so low profile that you almost don't notice it exists. Also it is easy to control the 12V RGB light strips with Bluetooth controller, so you can enjoy music sync with color changing lighting.


12V LED strip lights RV

Many RV owners want to replace the existing lights with different color temperatures or colorful RGB lights. 12V LED strip lights work perfect for the job . As they are flat and flexible, 12V LED strips save much space for the RVs, at the same time deliver remarkable lighting.

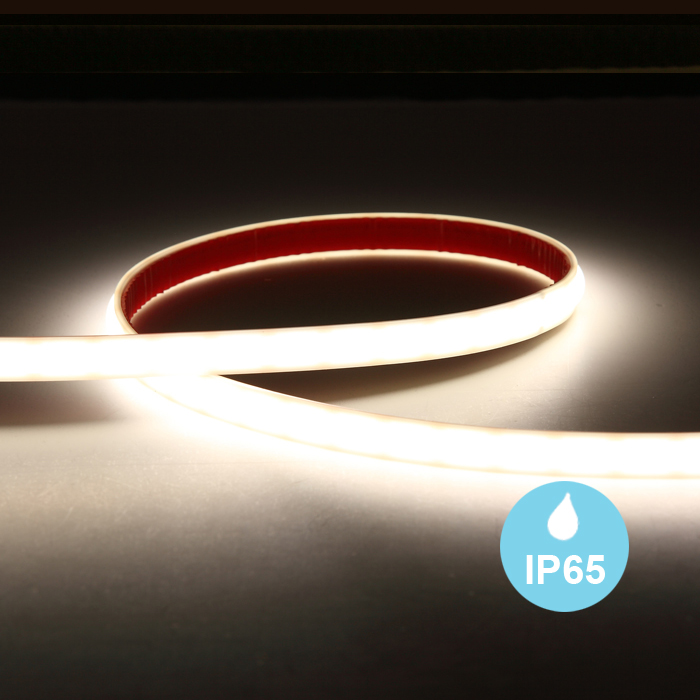

Waterproof 12V LED light strips

Boats and yachts sail on the sea. The air on the sea surface is full of moisture and wet. Waterproof 12V LED strip lights are designed for wet environment. 12V RGB LED strips are great choice for creating atmosphere lighting. Using LED controllers, you can set any colorful lighting change modes as well as sync with music on your smart phone. It can even sync with sound, like when people sing happy birthday to you!

In summary, if you are new to LED strips, or just install one or two strips(16.4ft or 5m, to 32.8ft or 10m long), or the accuracy of the installation length is important, you choose 12V LED strip lights.

If you have a big project and the installation length is long, then 24V is a better choice. For longer distance, larger lumen output, especially for large installation, the 24V LED strip is significantly better than the 12V LED strip because of lower line losses, fewer feed points, and easier installation. This is not a requirement, but a very good rule.

What are low voltage LED strip lights?

12V low voltage LED strip for commercial lighting

12V LED strip light is a low voltage lighting. The safe voltage that the human body can withstand is 36V. The voltage below 36V is called low voltage. Low voltage LED strip light has 5V, 12V, and 24V version. The most used are 12V and 24V.

International Electrotechnical Commission(IEC) defines the voltage below 120 DC as extra low voltage. So 12V and 24V LED strip lights are not only low voltage but extra low voltage, and can be used in a variety of occasions, posing no danger to the human body. This low voltage provides a super protection against electric shock and arc flash, creating an electrically safe condition for home, office, and commercial use.

Normally, short circuit with line voltage system is very dangerous and would cause sparks or loud explosions. But if you accidentally cause a short circuit with low voltage system, it would not cause any sparks or loud explosions. Therefore, any amateurs who want to try products such as LED strips can are very safe to do so.

Do you know why our human body's safe voltage is 36V? The reason why there is a safe voltage is that the human body is equivalent to a resistor, when a person touches a voltage, it generates a current, and it is the current passing through the human body that causes hurt to human.

Therefore, scientists have determined the maximum resistance of the human body under normal circumstances through experiments, and then obtained the human safe voltage value. This is why the human body safe voltage is 36V.

In summary, low voltage LED strip lights are very safe to use, posing no risk of electric shock or arc flash to human body.


12V LED strip lights mostly use SMD LED 2835 and 5050. Which type of LED is more suitable for you?

2835 VS 3528

Shape. SMD 2835 is smaller than SMD 5050. SMD 2835 has a thinner brace bracket than 5050. Because of its small size and flexibility for design, it is widely used in LED lighting products. 2835 LED employs chip reverse packaging technology that provides better heat dissipation, while the 5050 LED uses conventional packaging technology.

Chips inside. SMD 2835 LED is generally monochromatic LED that consists of a single chip package, such as for single color white, red, green, blue, etc. SMD 5050 is equipped with three chips. The three chips can be all white, all red (or green, blue), and also can be three different colors(red, green, and blue), the commonly referred to as 5050 RGB LED.

Brightness. SMD 5050 LED usually has the power 0.2W, while SMD 2835 can have 0.1W, 0.2W and 0.5W. The working voltage of the two LEDs is the same, as most ordinary LEDs, only 2.7-3.3V.

In short, both SMD 5050 and 2835 are very popular LED packages. SMD 2835 LED is suitable for white and single-color light strips, and the SMD 5050 is suitable for white, single-colored, or RGB light strips. If under the same power level, their brightness levels are about the same.
