2 Pin 8mm LED Strip to Strip Jumper or Solderless Corner connector
Model: strip-jumper-8
  • Quantity
  • $1.75

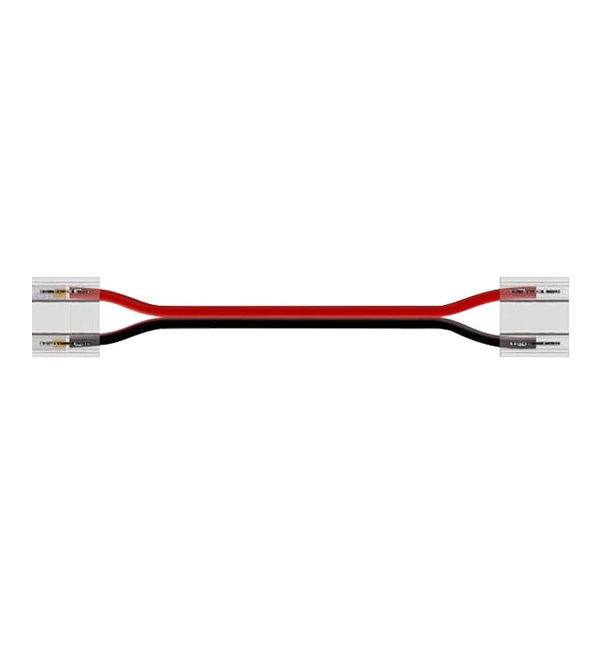

    2 Pin 8mm LED Strip to Strip Jumper or Corner Connector

    This is a 2 pin 8mm strip to strip jumper connector for LED strip light installation, very handy for joining our 2-conductor single color LED light strips across gaps or cabinet lips. It also works as an LED strip corner connector to make right turns. Actually, with the wire in between, it is easy to make any degree turn. The 2 pin LED connector is suitable for 12V or 24V 3528, 2835, 5050 white LED light strips that are 8mm wide, and with LED density of 160 LEDs per meter at most.

    Just cut the LED light strip along the cutting line, slip the strip end along the guide into the connector, fold over the clip cap on the back, and lock it into place. It just creates a secure solderless connection so easy!

    Our unique back clip design makes the connection super tight. More importantly, compared to other connectors on the market, it offers larger area of contact for the copper pads of our LED strips and the copper pads inside the connector. The larger area of contact offers better electricity flow, ensuring the best performance of your strip lights. The connector allows 6 Amps max current, ideal for high output LED strip light installation.

    The connector body is made of flame retardant nylon, able to prevent or retard the propagation of fire.

    The connector is super slim and easily fits most LED aluminum channel profiles.

    Product Features

    • 2 pin 10mm strip to strip jumper or corner connector.
    • 6 Amps max, suitable for high output LED strips.
    • For 12 or 24V DC strip light.
    • Total 6.6 inches (168 mm) long.
    • Create tight and secure connection.
    • Flame retardant material.
    • Fit most LED aluminum channel profiles.

    For more choices of indoor or waterproof LED strip connectors, please see the LED strip connector category.

    Recommended Readingļ¼š
    How to install LED strip lights?

    Specifications


      Model:  strip-jumper-8
      Finish:  White
      LED strip:  8mm wide, single color, max 160 LEDs/m
      Connector Size:  16x10.4x4.5 mm (0.63x0.41x0.18 in)
      Total Length:  6.6 inches (168mm)
      Amperage:  6 Amps Max
      Voltage:  12V or 24V DC
      Wire Gauge:  20AWG
      Rating:  CE, RoHS
      Material:  Flame retardant nylon and copper
