Super Low LED Strip aluminum Channel with Diffuser, 2 M (6.56 FT), S07
  • Super Low LED Strip aluminum Channel with Diffuser, 2 M (6.56 FT), S07
  • Super Low LED Strip aluminum Channel with Diffuser, 2 M (6.56 FT), S07
  • Super Low LED Strip aluminum Channel with Diffuser, 2 M (6.56 FT), S07
  • Super Low LED Strip aluminum Channel with Diffuser, 2 M (6.56 FT), S07
  • Super Low LED Strip aluminum Channel with Diffuser, 2 M (6.56 FT), S07
View All photos
Super Low LED Strip aluminum Channel with Diffuser, 2 M (6.56 FT), S07
Model: S07
  • Quantity
  • $18.00


    Qty Discounts New Price
    1-50$18.00
    51-99$17.00
    100+$16.00

    LED Light Strip Diffuser, Aluminum Channel - 2M(6.5FT), S07

    This LED aluminum channel is a shallow U shape profile, with cover as LED diffuser. Suitable for LED strip lights with medium to higher density of LEDs, like 120 LEDs or 160 LEDs per meter. Because the light distribution is better for shallow channels with higher density LEDs. For light strips with low density LEDs, choose a deeper aluminum channel can get better light distribution. This aluminum channel is made from high quality silver anodized aluminum, designed to, work as heat sink, help manage heat dissipation of flexible or rigid LED strips and make longer the lifetime of the strips.

    The aluminum channel also provides a rigid housing for the LED strips, protecting from water, dust, UV radiation, weather conditions, and other unwanted damaging elements. The aluminum channel with diffuser establishes an amazing beautiful look and help avoid glare. The cover is made of quality polycarbonate material, designed in a slight arch contour. The arch contour not only makes the cover stronger, but also widens the beam angle, providing better light distribution.

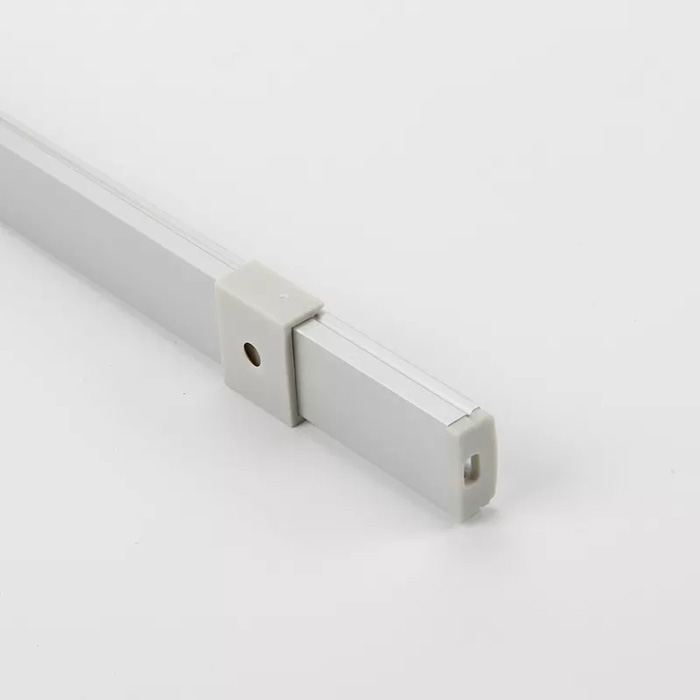

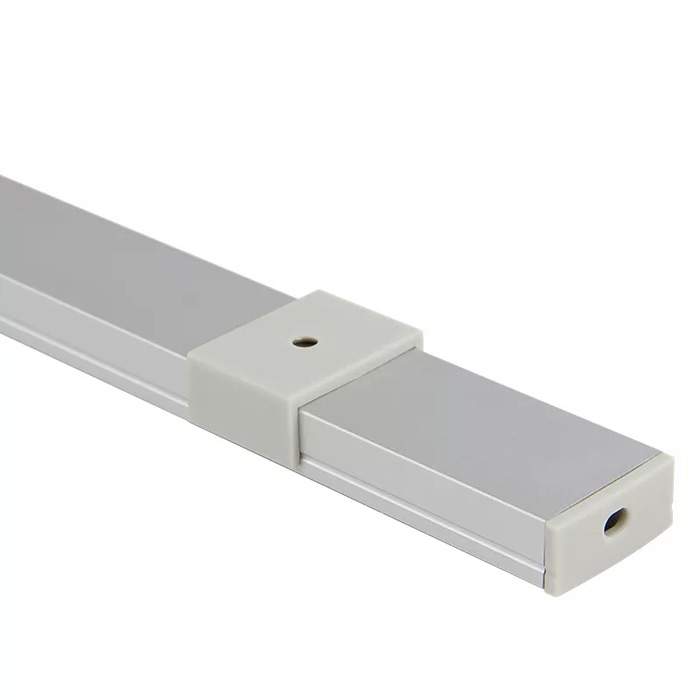

    The extrusion channel comes as a complete kit, including a cover(diffuser lens), two end-caps and two mounting brackets.

    This aluminum channel is typically surface mounted or flush mounted. It can be mounted using 3M double-sided tape or mounting brackets. Mounting brackets can work as connectors to install two aluminum channels next to each other.

    Product Features

    • Made of high quality anodized aluminum with thick layer of aluminum oxide.
    • Works for LED light strip that is up to 12mm width.
    • 6.5 FT long, with frosted cover.
    • Includes 2 end-caps, 2 mounting brackets.

    If you need clear cover, it can be separately purchased here: clear cover 1707. If you need more accessories, see here: end-cap 1707, mounting bracket 1707.

    For higher profile with deeper groove, see model 1712 and model 1715.

    For your choices, here has various series of top quality LED strip lights.

    Specifications


      Model:  S07
      Type:  Anodized aluminum
      Color:  Silver
      Diffuser Cover:  Frosted
      Length:  2 M (6.5FT)
      Width:  17.3 mm (0.68 in)
      Highth:  7 mm (0.28 in)
      LED strip width:  up to 12 mm (0.47 in)
      Accessories:  2 End-caps, 2 Mounting Brackets
