Multi-zone LED Dimmer Pro Kit for Dimmable Strip Lights
  • Multi-zone LED Dimmer Pro Kit for Dimmable Strip Lights
  • Multi-zone LED Dimmer Pro Kit for Dimmable Strip Lights
  • Multi-zone LED Dimmer Pro Kit for Dimmable Strip Lights
  • Multi-zone LED Dimmer Pro Kit for Dimmable Strip Lights
  • Multi-zone LED Dimmer Pro Kit for Dimmable Strip Lights
View All photos
Multi-zone LED Dimmer Pro Kit for Dimmable Strip Lights
Model: dim-pro-4zone-kit
  • Quantity
  • $67.80

    Qty Discounts New Price

    Multi Zone, Touch LED Dimmer Pro Kit for 12V and 24V Dimmable LED Strip Light

    The kit is ready for installation, items included:

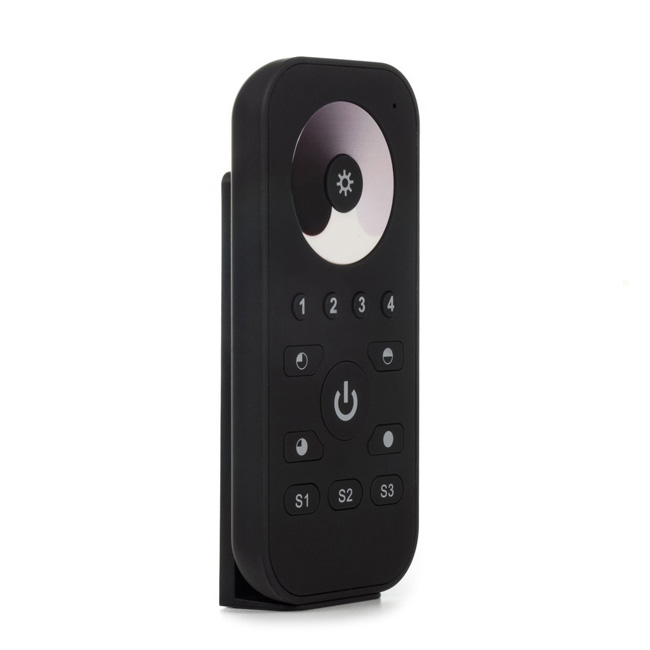

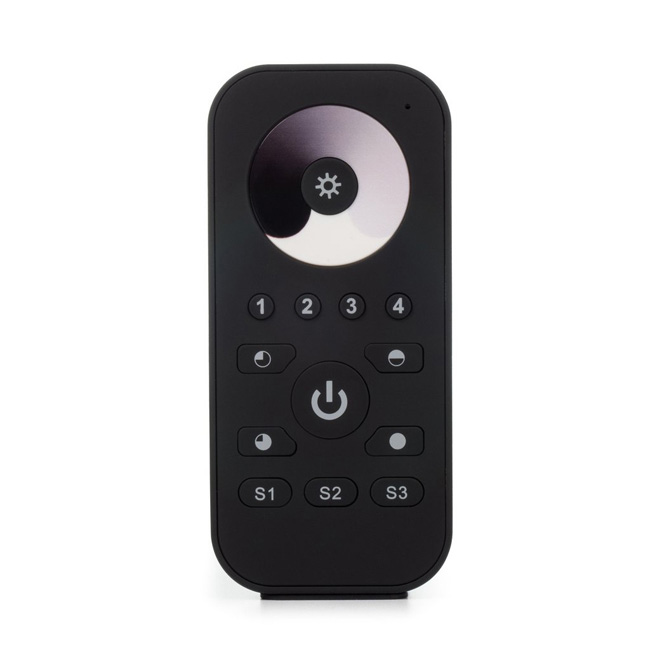

    • A Pro Remote Control, multi zone (4 zones and 3 scenes/zone), touch wheel and button style

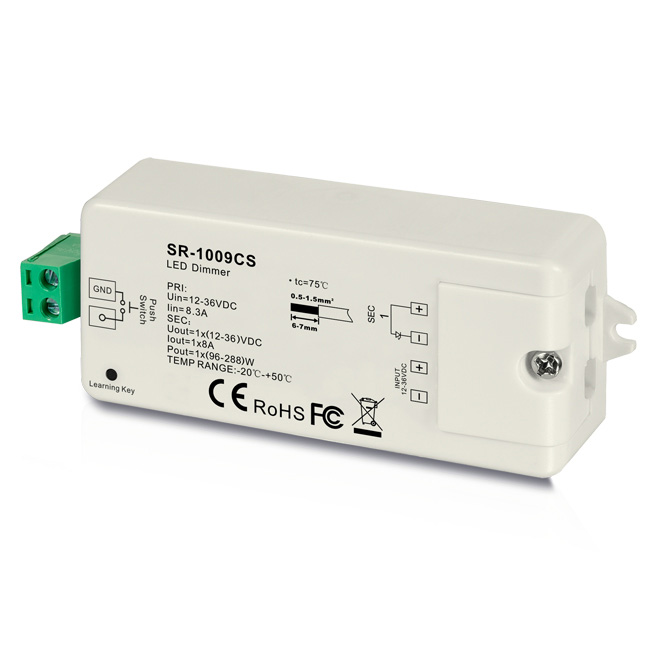

    • A Dimmer Receiver Pro, 8 Amps


    This multi zone, touch LED dimmer kit is highly sensitive and professional grade, which offers optimal dimming functions for 12V and 24V DC dimmable LED strip lights. It allows to accurately adjust brightness without any flickering, creating the perfect level of ambient lighting for any occasion. This RF (Radio Frequency) dimmer remote can wirelessly control up to 4 zones of LED light strips.

    Zones are ideal for home and commercial lighting where different rooms or areas in a room require a different amount of light. You can set each zone individually and create the perfect ambiance lighting. This way you can save energy by turning off the zones that are not needed. You also can save colors or scenes to be easily retrieved later. Each zone has a dedicated button for easy switching and you can save up to three scenes for each zone. On the highly sensitive touch wheel, you can fine tune the brightness level you want.

    This RF dimmer is a four-zone remote control with great flexibility. It is paired with the single channel Pro Dimmer Receiver, which supports 8 Amps at 12V - 24V DC. One remote can control unlimited receivers within the control range. The receiver is WiFi compatible. Adding a WiFi-RF gateway converter, the receiver can work as a WiFi dimmer, which can be controlled by your smart phone or tablet via WiFi connection, using an application software installed with Apple IOS or Android mobile system.

    back view of LED dimmer receiver

    The remote comes with a magnetic holder that can be installed anywhere using 3M double sided tape or screws. When you are done using the remote, just attach to the magnetic holder.

    The applicable LED strip lights that work with this Pro Dimmer include white and single colored light strips, such as warm white, neutral white, daylight cool white, red, blue, green, etc.

    Product Features

    • Remote control is white finish.
    • Smooth dimming and switch on/off functionality, no flickering.
    • Control an unlimited number of the Pro dimmer receivers within a control range of 30 meter (100 feet) radius in a benign electromagnetic environment. RF signal goes through walls.
    • Power off memory function. When powered on next time, the lights will return to their previous brightness.
    • Wireless remote control, with no needs to deal with extra wires.
    • The receiver is WiFi compatible. Add a WiFi-RF gateway converter to work as a WiFi LED dimmer.
    • Multi zone (up to 4) control function. Save scenes to be recalled later.
    • Four dedicated buttons for easily adjust the brightness level to 25, 50, 75 and 100 percent.
    • Remote dimensions: 120x55x17mm (4.72 x 2.16 x 0.67in).
    • Receiver dimensions: 95x37x20mm (3.74 x 1.45 x 0.79in).
    • Magnetic holder dimensions: 97mm x 35mm x 15.5mm. 3M VHB double sided tape and two screws are included for installing the holder.

    Note: the remote is powered by 3 x AAA batteries, which are NOT included.

    The load capacity depends on the dimmer receiver's wattage, not the remote.

    If you are setting up multi zone LED lighting, you can buy multiple the Pro Dimmer Receivers. Of course, you can buy multiple the Pro remotes to place in different locations for convenience as well. One receiver can only be paired with at most 8 remote controls.

    If you like to see more dimmer choices, please check our LED dimmer series.


      Model:  dim-pro-4zone-kit
      Type:  RF, Wireless
      Multi Zone:  4 Zones
      Remote Input Volt:  4.5V ( AAA battery x 3, NOT included)
      Receiver Input Volt:  12V or 24V DC
      Light Color:  White, or Single Colored
      Output Channels:  1 CH
      Output Max Amps:  8A Max
      Output Voltage:  12V or 24V DC
      Output Wattage:  96W or 192W
      Control Range:  100ft(30 meters)
      Remote Sizes:  120x55x17mm (4.72 x 2.16 x 0.67in)
      Receiver Sizes:  95x37x20mm (3.74 x 1.45 x 0.79in)
      Waterproof:  IP20
      Rating:  CE, RoHS
      Warranty:  2 Years
