RF Wireless Multi Zone CCT LED Controller Pro Kit for Tunable White LED Strips

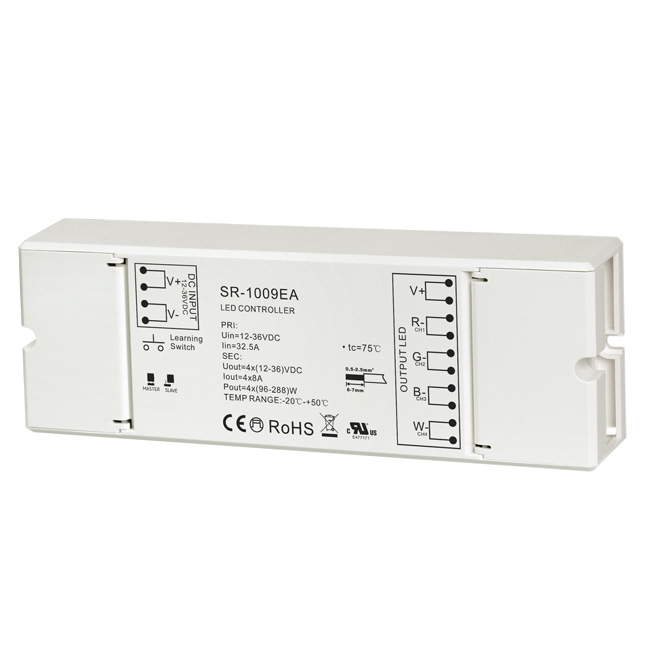

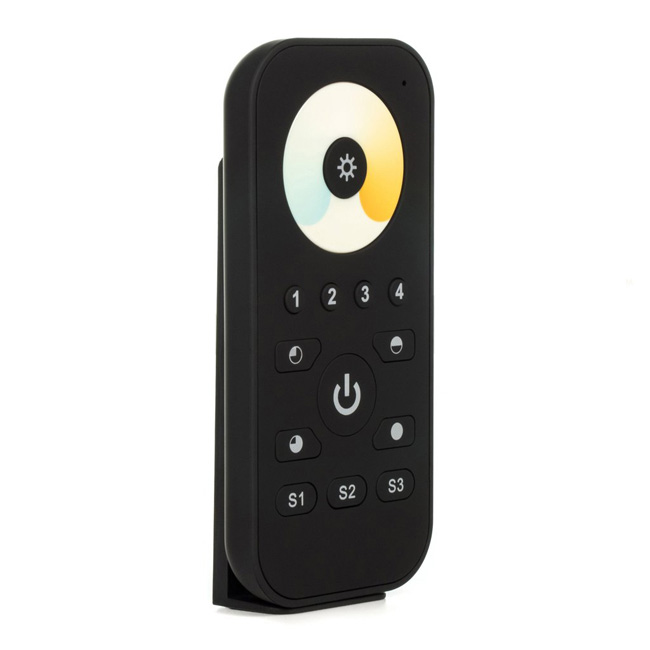

This wireless CCT LED controller kit includes a 4-zone tunable white remote control and an RF LED controller receiver, which is designed to freely select and adjust the color temperature of tunable white LED strip lights. The controller kit is built to the professional grade for performance and durability. The RF multi zone remote wirelessly control up to 4 zones of adjustable color temperature LED strip lights. Zones are ideal for home and commercial lighting where different rooms or areas in a room require a different amount of light. You can set each zone individually and create the perfect ambiance lighting. This way you can save energy by turning off the zones that are not needed. You also can save colors or scenes to be easily retrieved later. Each zone has a dedicated button for easy switching. Up to three scenes can be save to each zone. Using the highly sensitive touch color wheel, you can fine tune to select your desired various color temperatures from one same LED strip, from warm white to cool white daylight.

The RF wireless controller has a control distance of 30 meters (100ft) between the remote and receiver. RF signal does not need line of sight between remote and receiver, which means that the signal can go through barrier and walls.

The remote comes with a magnetic holder that can be installed anywhere using 3M double sided tape or screws. When you are done using the remote, just attach to the magnetic holder.

Product Features

• Control range is 100 ft, or 30 meters from the remote control.
• RF wireless, no line of sight needed. Signal goes through walls.
• Fine tune color temperature from warm white to daylight cool white.
• Control multi zone (up to 4) lights. Easily switch between zones.
• Four channels, Max 8 Amps per channel.
• 12V, 384W. 24V, 768W.
• Save colors or scenes to be recalled later.
• Four dedicated buttons for easily adjust he brightness level to 25, 50, 75 and 100 percent.
• Magnetic holder dimensions: 97mm x 35mm x 15.5mm. 3M VHB double sided tape and two screws are included for installing the holder.

One remote can control unlimited number of receivers, up to 4 zones. But one receiver can only be paired with at most 8 remotes.

This tunable white LED controller kit is ready for use. If you are setting up multi zone LED lighting, you can buy multiple receivers. Of course, you can buy multiple remotes to place in different locations for convenience as well.

We also offer the multi zone tunable white remote, or tunable white LED controller receiver separately.

For more choices, please see Tunable white LED controller series.
