WiFi RGBW LED Controller Kit, 8 Zone, Wall Mount
Model: wifi-rgbw-kit-8zone-wall
  • Quantity
  • $114.00


    Qty Discounts New Price
    1-5$114.00
    6-10$110.00
    11+$105.00

    Smart WiFi RGBW LED Controller Kit, Wall Mount, Multi Zone, 8 Zone

    This smart WiFi RGBW LED Controller kit enables users to use smart phone to control and fine tune RGBW LED strip lights any where and any time. The WiFi controller is compatible with Alexa or Google Assistant, and can be controlled by the wall mount remote as well. It is also able to use voice control. The remote control is designed with an elegant panel made of stalinite glass. With high precision touching ICs built underneath, touch control is as sensitive and steady as never before. The highly sensitive color wheel and dedicated buttons allow you to manage dynamic RGBW LED strips to the full extent at ease.

    This WiFi controller kit is ready for installation, items included:

    • An RF remote control panel with elegant stalinite glass cover. Wall mount.
    • A Wireless Receiver, 6 Amps/CH, 15 Amps total max output.

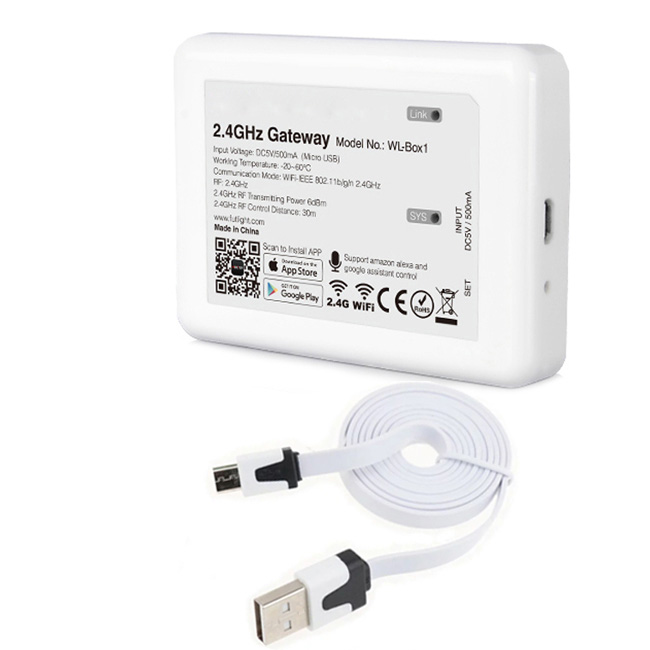

    • A 2.4G Gateway WiFi Transmitter.

    The remote allows users to freely select static colors or color color changing modes, or enjoy pure white of your RGBW CCT LED strip with a dedicated button. It also easily blends white into any colors to produce richer and bolder bright colors. With this controller, you can easily create and control up to eight zones lighting for work, relaxing, or entertainment.

    The WiFi RGB controller provides two-way data communication, letting you know the light status at any time. Use your smart phone to control the light anytime and anywhere. Turn on the light on your way home, turn off the lights that were forgotten when you left home.

    Multi zone RGBW LED strip installation requires multiple RGBW controller 5-in-1 receivers. More Receivers can be bought separately. RF remote and the WiFi transmitter has a control range of 100 ft. The matching receivers have auto-transmission function, relaying signal from one receiver to another, as long as they are within 100 ft distance. That means not all the receivers have to be within 100 ft from the RF remote or the WiFi transmitter. The layout can be like this: the first receiver is within 100 ft from the remote or the WiFi transmitter, the second receiver is within 100 ft from the first receiver, and so on.

    wall mount multi zone led controller system

    The WiFi controller is Alexa and Google Assistant compatible. It is easy to be integrated into smart home control system. Use smart phone to control your lights any where and any time. Voice control is available as well. The WiFi transmitter gateway is an independent device that can be put any where with USB power port.

    Easy Installation. NO NEED to open a hole on the wall. The wall mount remote comes with a base panel. Use screws or double-sided tape to mount the base panel anywhere on the wall. The remote panel is then clip mounted onto the base panel. The base panel is fully hidden under the remote panel to present a beautiful installation finish.

    Easy color selection. The controller is an RF remote equipped with highly sensitive touch panel color wheel and control buttons. Color wheel allows free selection of colorful lights.

    Enjoy pure white. By touching the white button, you can enjoy pure white light at ease.

    Blend white into colors. With the saturation bar, you easily blend white into any colored light, creating bolder and richer colored lighting.

    Multi zone function. It has the ability to control up to 8 zones of RGBW LED strip lights. With a dedicated button for each zone, you can freely switch to the desired zone easily. Zones provide great flexibility to control different groups of lights independently or synchronously with a single controller. You can set each zone individually and create the perfect ambiance lighting. Turning off the zones when they are not needed saves energy. With the power off memory feature, the controller returns the lights to the previous status when powered on.

    RF and WiFi control signals go through walls. The remote control wirelessly connects with the RGBW 5-in-1 receiver. Wireless connection reduces wiring work and simplifies your light installation, saving labor and time. RGBW LED strips are wire connected to the receiver. One controller can be paired with unlimited receivers within its control range.

    Product Features:

    • Use smart phone, or remote to control lights.
    • Alexa or Google Assistant compatible. Voice control.
    • Remote is built with highly sensitive, beautiful stalinite glass panel. White finish.
    • Touch color wheel and control buttons for easy selection and switch.
    • Control up to 8 zones, independently or synchronously. Dedicated buttons to easily switch to any zone.
    • Freely adjust brightness.
    • Select static white color, or blend white into any colors, creating more vibrant bright colors.
    • Enjoy pure white of your RGBW LED strips.
    • Dedicated button for 60 seconds delay turn off.
    • Power off memory function. Return to previous status when powered on.
    • Remote control operates on two AAA batteries (NOT included).
    • The WiFi transmitter and the RF remote can control an unlimited number of receivers within a control range of 30-meter (100 feet) radius in a benign electromagnetic environment. RF signal goes through walls.

    For more choices, please see RGBW LED controller series.

    Specifications


      Model:  wifi-rgbw-kit-8zone-wall
      Type:  RF, WiFi, Wireless
      Multi Zone:  Control 1 to 8 zones
      Remote Input Volt:  3V (AAA battery x2, not included)
      Receiver Input Volt:  12V or 24V DC
      Light Color:  RGBW
      Output Channels:  5 CH
      Output Max Amps:  6A/CH, total 15A max.
      Output Voltage:  12V or 24V DC
      Output Wattage:  180W or 360W
      Control Range:  100ft(30 meters)
      Remote Sizes:  146x106x20 mm (5.75 x 4.17 x 0.79 in)
      Receiver Sizes:  124x37x23mm (4.9 x 1.45 x 0.9in)
      WiFi Gateway Volt:  5VDC (MicroUSB power cable included)
      WiFi Gateway Size:  90x66x15mm (3.54 x 2.6 x 0.59in)
      Waterproof:  IP20
      Rating:  CE, RoHS
      Warranty:  2 Years
